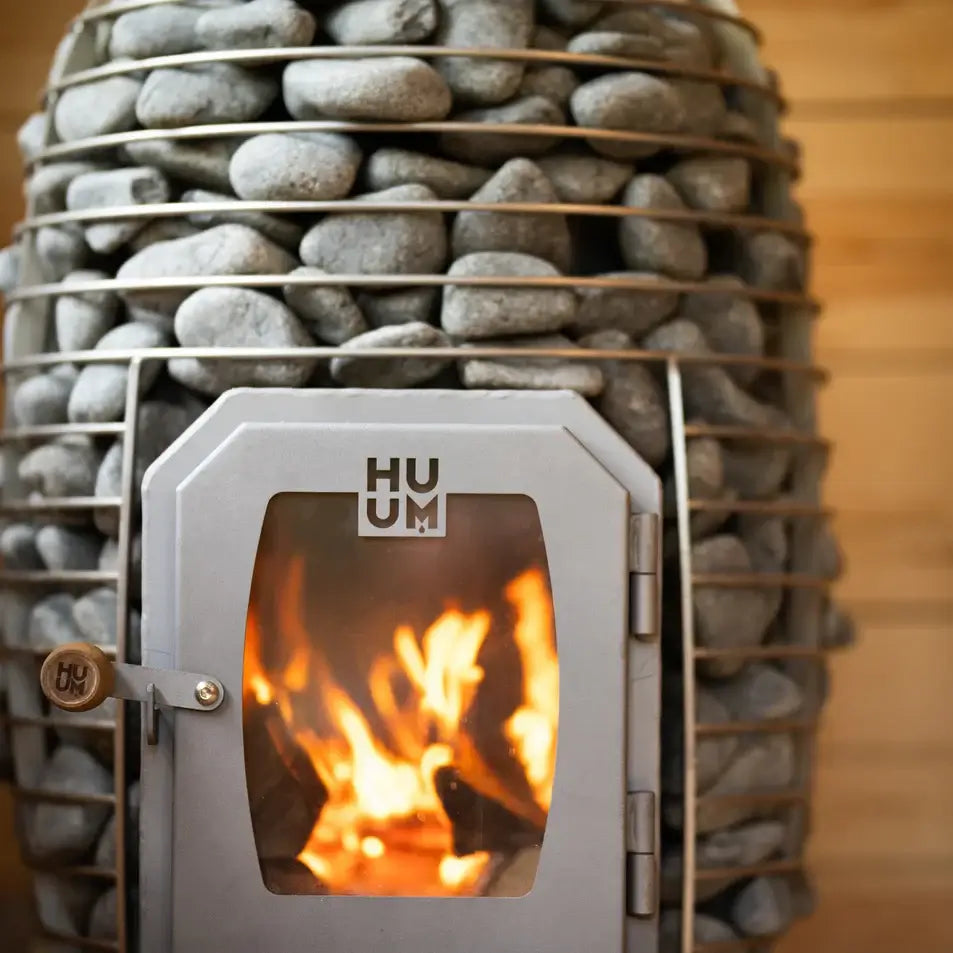

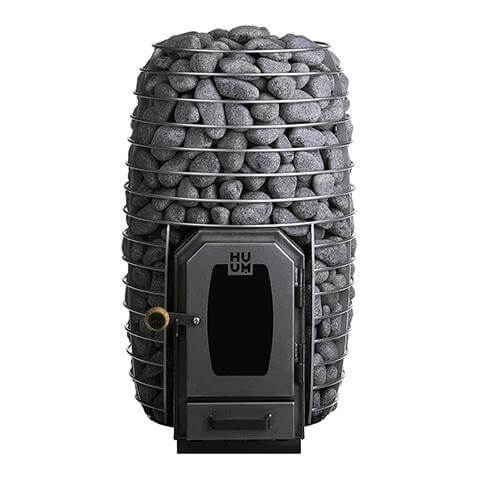

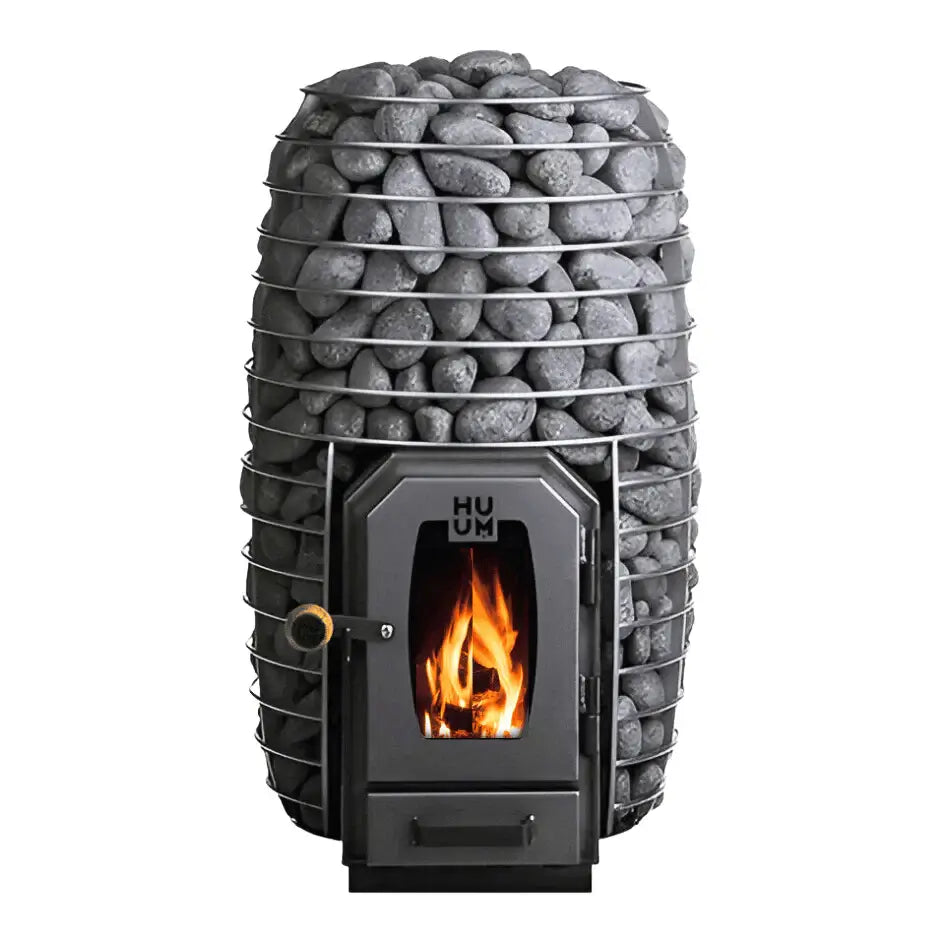

Elevate Your Sauna Experience with the HUUM HIVE WOOD Sauna Stove

Description

Discover Tradition with HIVE WOOD

Immerse yourself in the perfect blend of tradition and modernity with the HIVE WOOD Sauna Stove. This wood-burning sauna stove is a performant and stylish choice for those who appreciate the simplicity of a traditional sauna or lack electrical connections in their steam room.

Efficiency and Elegance in Design

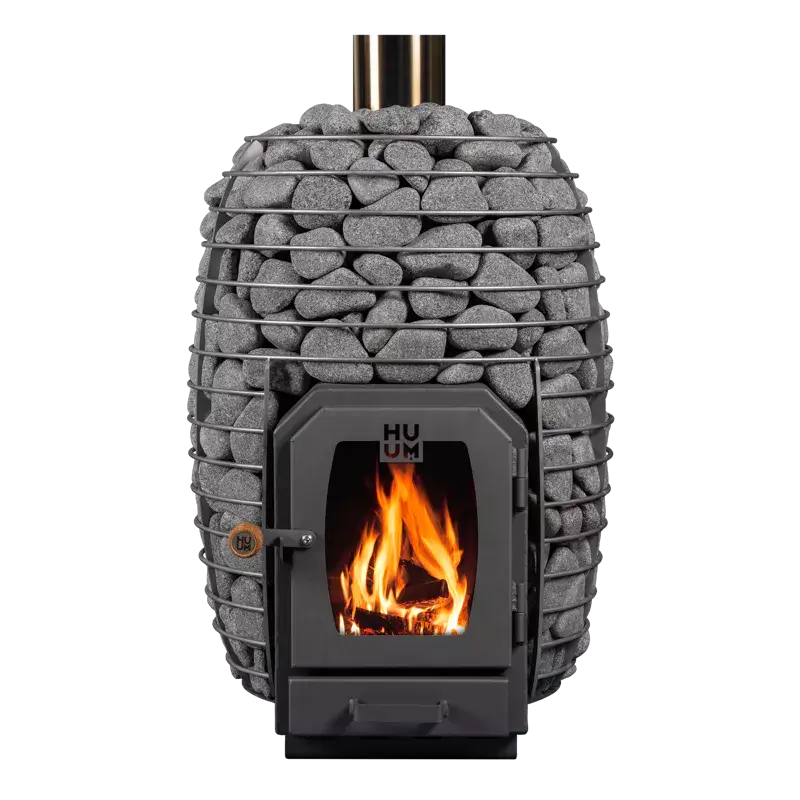

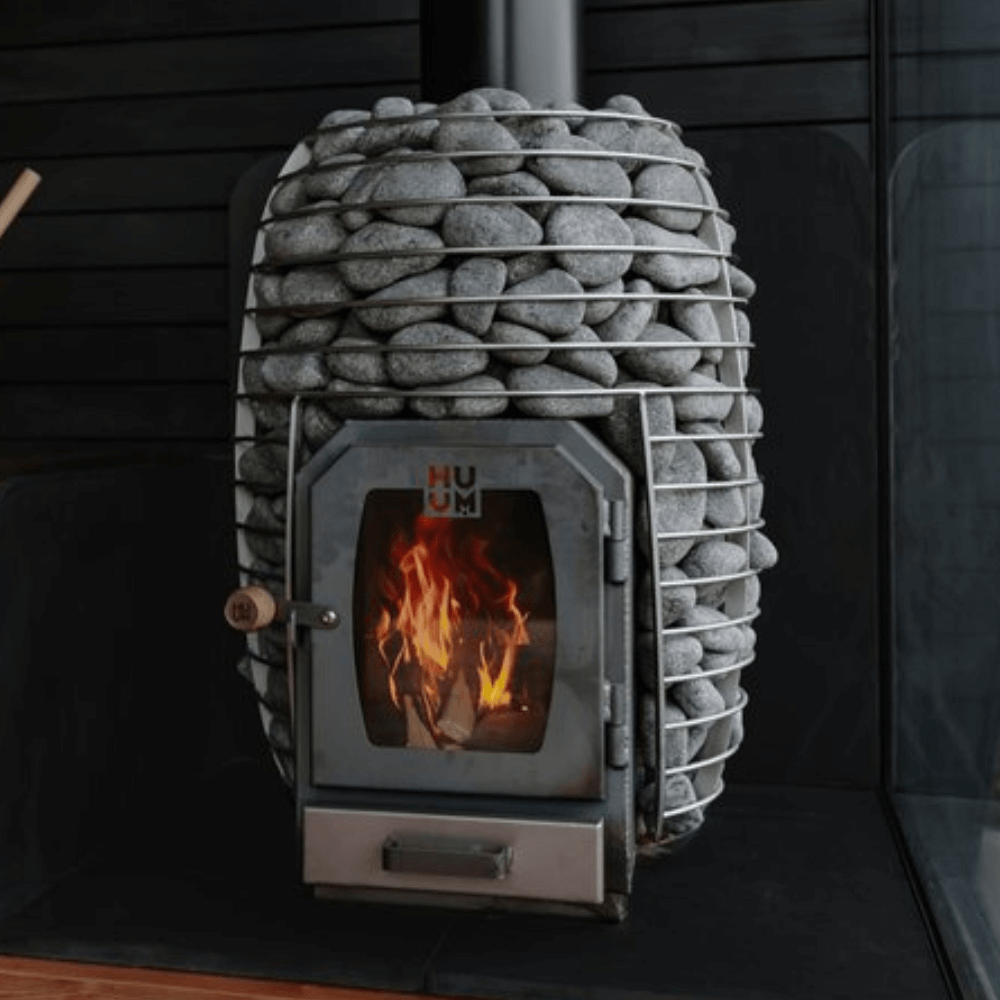

Featuring an elegant round design, the HIVE WOOD highlights the natural beauty of the stones, creating a visually stunning centerpiece in your sauna. The large quantity of heating stones ensures a long-lasting and mild steam, while the furnace's efficient construction guarantees an impressive and forceful flame.

Cozy Atmosphere

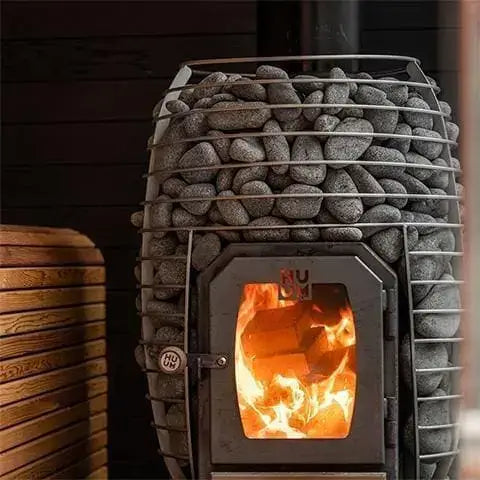

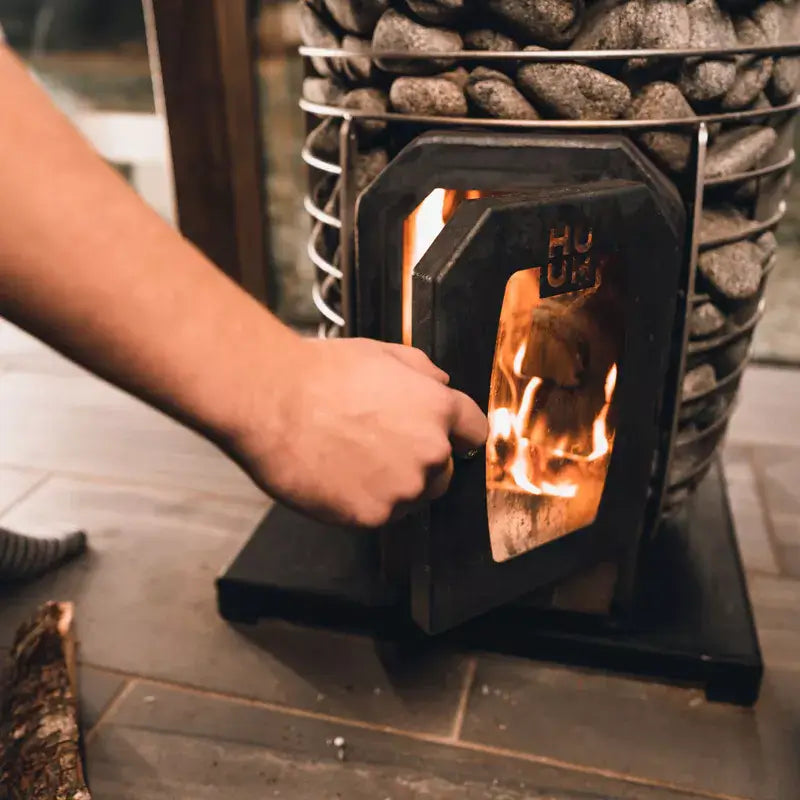

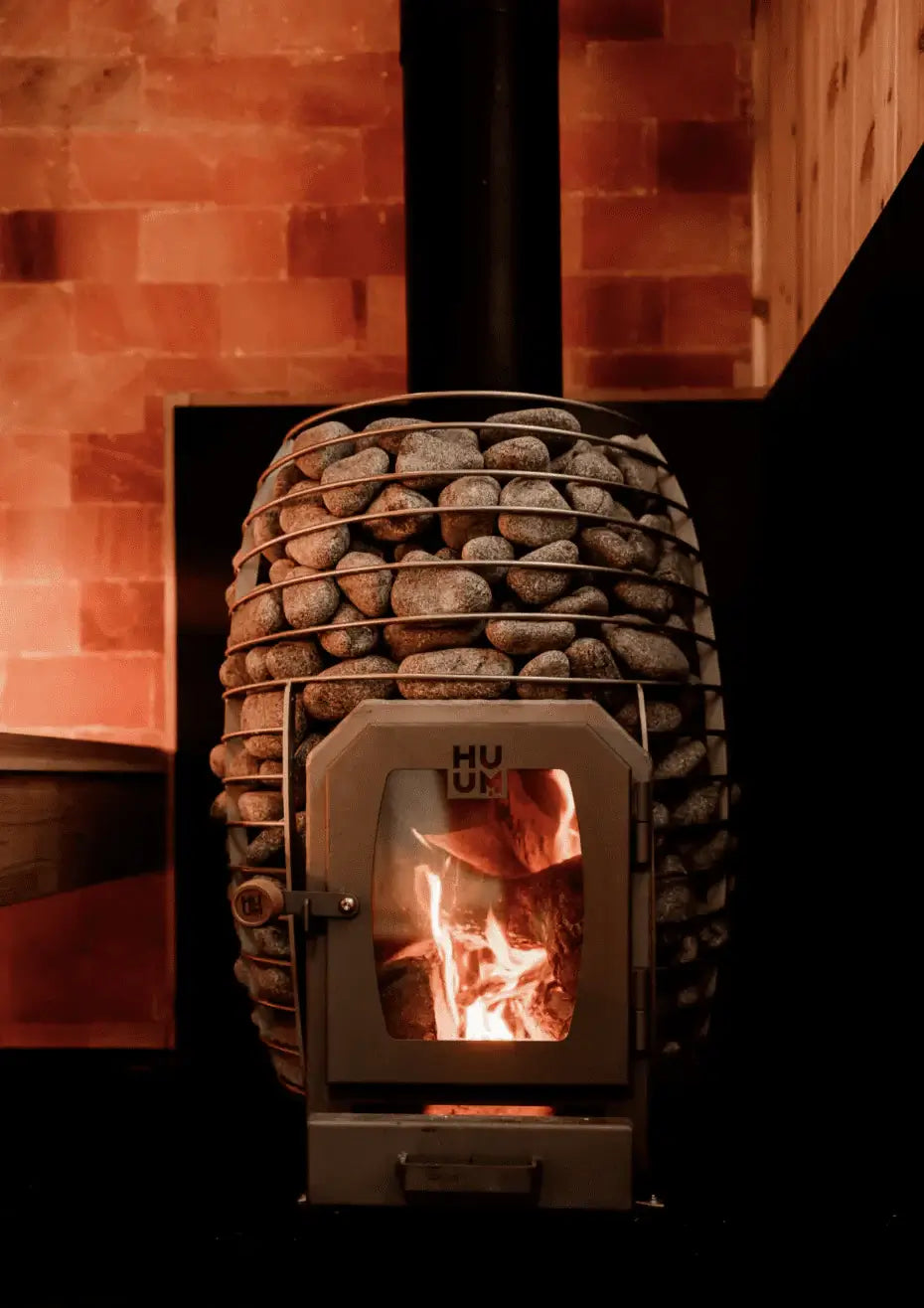

Experience the live fire and crackling of wood in the hearth, creating a cozy atmosphere that helps you escape the hustle and bustle of everyday life. Choose the HIVE WOOD for a genuinely authentic sauna experience.

Versatile Functionality

Take advantage of the stove's versatility by mounting a heat exchanger below the sauna stones. This feature allows you to heat water simultaneously while enjoying the soothing warmth of the wood-burning stove.

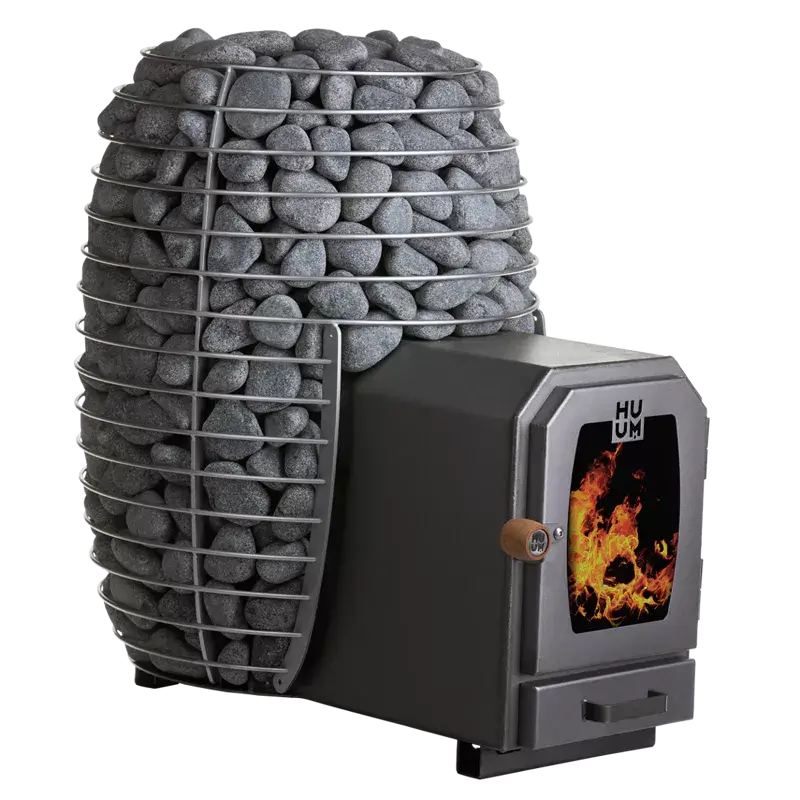

The HIVE WOOD LS model allows heating of the sauna from an adjacent room or outside the sauna. With a through-the-wall firebox extension, firewood is directly inserted on the other side of the wall. Having an outside access eliminates the need to bring wood into the sauna room.

Precision-Crafted Excellence with HIVE WOOD

Designed for sauna rooms ranging from 212 to 565 cubic feet, the HUUM HIVE Wood takes the wood-fired sauna experience to the next level.

Robust Construction

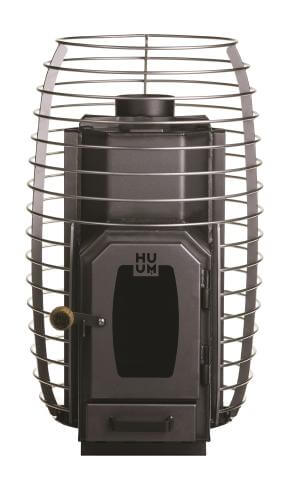

Crafted with precision in Estonia, the HIVE WOOD features a robust 1/5" thick stainless-steel flame tamer for long-lasting strength and durability. The stainless-steel furnace door adds an extra layer of sturdiness.

Consistent and Superior Heating

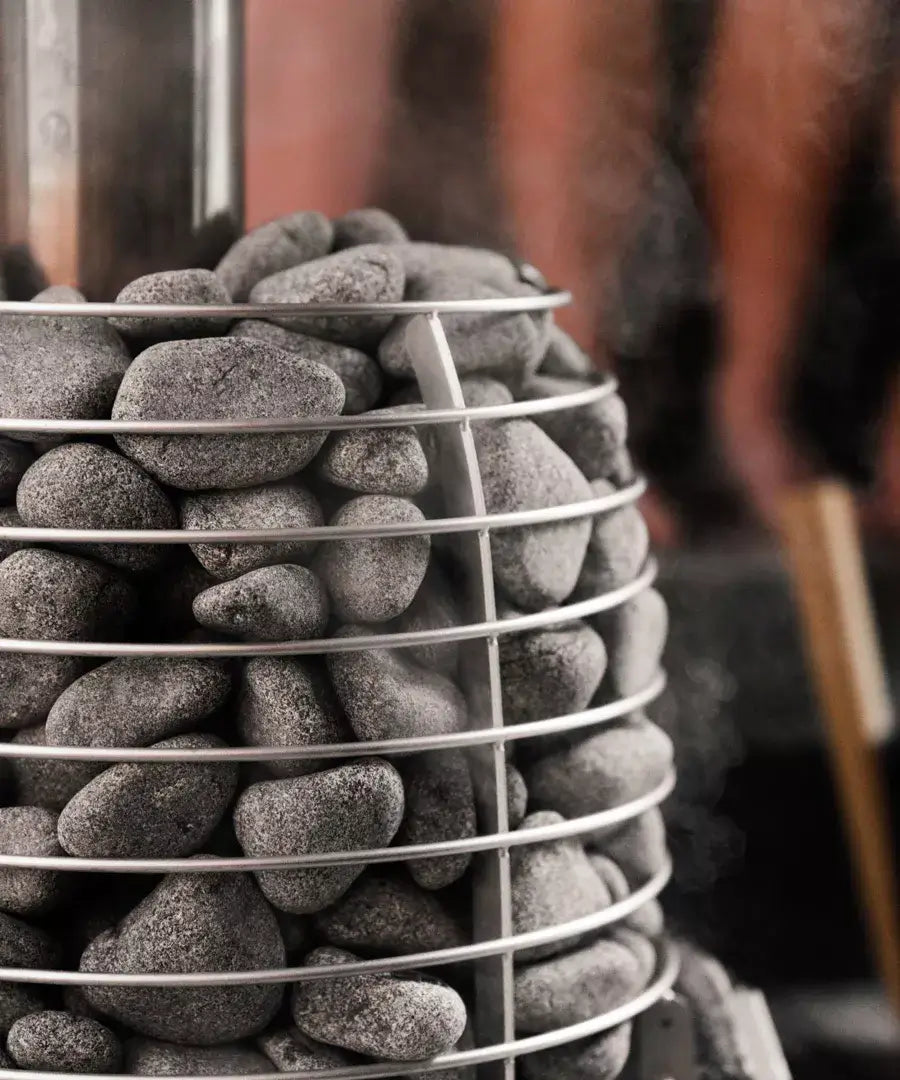

With a generous 199-pound stone capacity, the HIVE WOOD radiates consistent heat, providing a superior sauna experience. The large number of exposed stones enhances heat retention and steam capability, creating an environment conducive to relaxation.

Warranty Assurance

HUUM stands by the quality of the HIVE WOOD with a 5-year limited warranty, offering peace of mind for years of safe and efficient operation.

Elevate your sauna experience with the HUUM HIVE Wood Series, where craftsmanship, authenticity, and elegance converge.

Presentation Video

Features

Specifications

All HUUM HIVE WOOD:

• Primary Fuel: Wood
• Installation Type: Floor-Mount
• Max Temperature: 200º F

HIVE WOOD 13 kW:

• Sauna room:  212-459 cu. ft.
• Equivalent Watts: 13 kW
• Stone Capacity: 119 lbs of stones (90 kgs)
• Dimensions: 29.6" Height x 17.7" Width x 18.1" Depth
• Heater weight: 104 lbs (47 kgs)
• Firewood max length: 12"

• Flue (⌀): 4.5" (115 mm)

HIVE WOOD 17 kW:

• Sauna room: 283-565 cu. ft.
• Equivalent Watts: 17 kW
• Stone capacity: 287 lbs (130 kgs)
• Dimensions: 29.6" Height x 21.9" Width x 23.2" Depth
• Heater weight: 143 lbs (65 kgs)
• Firewood max length: 16"

• Flue (⌀): 4.5" (115 mm)

HIVE WOOD 17LS kW:

• Sauna room: 283-565 cu. ft.
• Equivalent Watts: 17 kW
• Stone capacity: 287 lbs (130 kgs)
• Dimensions: 29.6" Height x 21.9" Width x 29.1" Depth
• Heater weight: 170 lbs (77 kgs)
• Firewood max length: 16"

• Flue (⌀): 4.5" (115 mm)



Safety Clearances:

What's in the box

• HUUM HIVE WOOD Sauna stove
• Installation and Operation manual
• 5-Year limited warranty (excluding glass)

How to Install

For the Installation Instructions and Electrical Connections, please refer to the following document: HIVE WOOD SERIES Installation and Operation Manual

Please note: the electrical connection of the device must be performed by a qualified electrician in accordance with the applicable standards and requirements.

Additional Resources

HUUM Certificate Of Compliance

For Simple Sauna Sizing, please follow the link HUUM - Sizing Your Heater. Choose the heater with power adequate to the cubage of the sauna room.  However, for non-insulated walls (brick, glass block, glass, concrete, etc.) a more powerful heater is needed. Add 1,2 m³ to the cubage of the steam room per each square meter of uninsulated wall. For example, a 10 m³ sauna room with a glass door corresponds to the power requirement of a 11.5 m³ sauna room.

Accessories and Add-ons

The following options should be considered with your heater purchase.

Sauna Stones

Required for Operation. Sold Separately.

The HUUM round sauna stones of Olivine diabase are durable and their thermal capacity is high. It’s recommended to use round sauna stones in HUUM sauna heaters as they complement the design of the heaters and provide milder steam.

You regulate the heat and steam of the sauna by throwing water on the sauna rocks. The shape, size and composition of the stones, and their placement in the heater make all the difference. We recommend round sauna rocks because they provide milder steam. The round shape ensures that the water reaches inner stones and evaporates gradually instead of vaporizing in one go from the top layer. Sauna rocks are highly visible in HUUM sauna heaters, and you’ll need smaller and larger stones for filling the heater evenly without noticeable gaps. We suggest stacking a denser top layer with slightly smaller stones. This enhances the accumulation of heat.

• HUUM HIVE WOOD 13 sauna stove requires approximately: 198lbs sauna stones with a diameter of 2-4 in (5-10 cm). 6 boxes x 33lbs (15kg)
• HUUM HIVE WOOD 17 sauna stove requires approximately: 298lbs sauna stones with a diameter of 2-4 in (5-10 cm). 9 boxes x 33lbs (15kg)

Chimney Kits

Required for Operation. Sold Separately.

The HUUM HIVE WOOD sauna stove additionally requires connection with the chimney.

1. Thru-Ceiling Chimney Kit

This HUUM thru-ceiling sauna wood stove chimney set is designed to extend straight up through the ceiling and is compatible with all HUUM's wood-fired sauna stoves. This premium set includes everything needed to provide your sauna experience with both beautiful form and safe-minded function.

The set includes:

• Single-wall 1m pipe
• Welded chimney base
• Double-wall 0.5-meter chimney
• Inclined ceiling cover plates (2 parts)
• Partition ceiling insulation with cooling T600 (which is optional)
• Roof rafter attachment to the chimney
• Double-wall straight 1-meter pipe
• Roof underlay seal 160-230 (which is also optional)
• Ventilated roof flashing 20-35 degrees
• Rain collar
• Chimney cap
• Installation manual

Features:

• Through ceiling
• Compatible with all HUUM wood sauna stoves
• Stainless steel
• T600 cooling insulation
• Mounts in vertical position
• Works with smaller fireplaces
• Designed, engineered, and made in Estonia
• Limited 5-year warranty

Specifications:

HUUM HIVE Sauna Stove - Thru-Ceiling Chimney Kit Specs

2. Thru-Wall Chimney Kit

This HUUM thru-wall sauna wood stove chimney set is designed to extend through the wall and is compatible with all HUUM's wood-fired sauna stoves. This premium set includes everything needed to provide your sauna experience with both beautiful form and safe-minded function.

The set includes:

• Single-wall pipe (2)
• Chimney base
• Single-wall elbow with cleaning hatch
• Double-wall chimney
• Wall cover plates (2 parts)
• 90-degree double-wall elbow
• Double-wall pipe
• Chimney element bracket
• Chimney cap
• Installation manual

Features:

• Through wall
• Compatible with all HUUM wood sauna stoves
• Stainless steel
• Mounts in vertical position
• Works with smaller spaces
• Designed, engineered, and made in Estonia
• Limited 5-year warranty

Specifications:

HUUM HIVE Sauna Stove - Thru-Wall Chimney Kit Specs

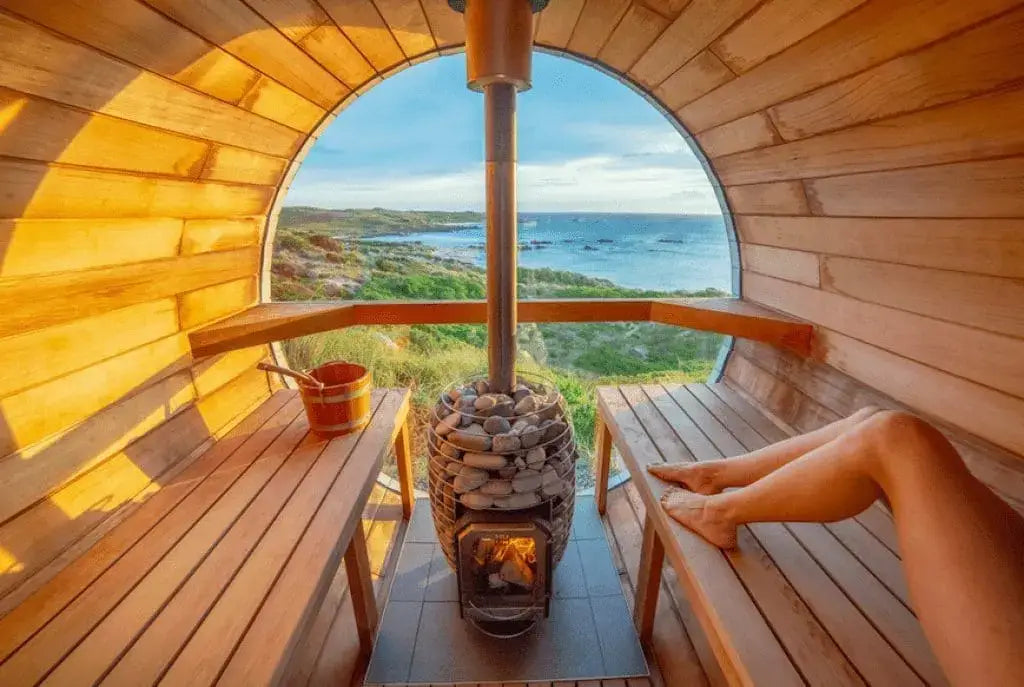

3. Barrel Sauna Chimney Kit

This HUUM Barrel Chimney Set is designed to extend straight up through the ceiling and is designed for use with HUUM wood-fired sauna stoves inside Barrel saunas.

This premium set includes everything needed to provide your sauna experience with both beautiful form and safe-minded function.

The set includes:

• Single-wall 0.25m pipe
• Welded chimney base
• Double-wall 0.5-meter chimney
• Inclined ceiling cover plates (2 parts)
• Double-wall straight pipe 1 meter
• Universal rubber roof flashing
• Rain collar
• Chimney cap

Features:

• Through ceiling
• Compatible with all HUUM wood sauna stoves
• Stainless steel
• Designed for Barrel sauna use
• Mounts in vertical position
• Works with smaller spaces
• Designed, engineered, and made in Estonia
• Limited 5-year warranty

 Specifications:

HUUM HIVE Sauna Stove - Barrel Sauna Chimney Kit Manual

Protective Bedding

Optional.

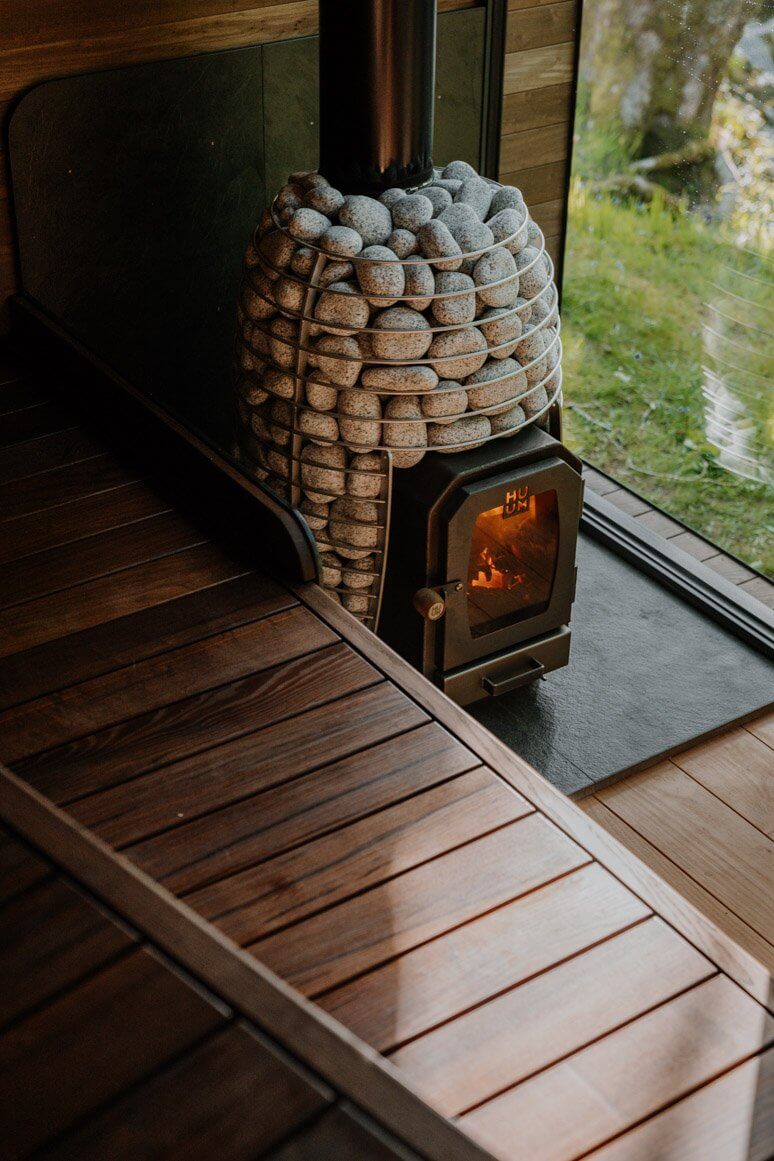

The Protective Bedding, or Thermal Plate, of HIVE Wood is a protective accessory that increases safety when the sauna stove is placed on a floor made of wood or other combustible materials. It is also recommended in case of water underfloor heating system piping in the floor below the sauna stove. The thermal plate protects the floor and the piping.

• For HUUM Hive series sauna stoves (not suitable for LS models)
• Dark Grey to blend with stove
• Helps protect floor and heated flooring
• Available in 2 sizes:
• Small Dimensions: 19.7"W (500mm) x 19.7"D (500mm) x 0.2"H (5mm - with leg 3.5mm without) - Suited for 13kW HIVE WOOD Sauna Stove
• Large Dimensions: 23.2"W (500mm) x 23.2"D (500mm) x 0.2"H (5mm - with leg 3.5mm without) - Suited for 17kW HIVE WOOD Sauna Stove
• Designed, engineered, and made in Estonia
• Limited 5-year warranty

Reflector Panel

Optional.

The reflector is an optional accessory that reflects back the heat that emanates from the heater and allows to reduce the safety distances from the walls by half. The reflector is made of stainless steel, and it is attached to the wires of the heater. It is also possible to connect several reflectors to each other for obtaining a larger surface.

• Allows for heater installation closer to wall
• For use with HIVE sauna heaters & stoves
• Stainless steel construction
• 5-Year limited warranty
• Place the reflector hooks simultaneously on the heater wires in a way that the reflector’s top hooks fall over the upper wire and lower hooks go around to their closest wire. Congrats - You are done!
• Can be connected together. If you want to connect a reflector to another one, place the outer sides of the reflectors facing each other, and fix them together with bolts and nuts at the top and bottom.

HUUM HIVE Reflector Manual

Stone Cage

Optional.

The stone cage is an accessory that serves both practical an aesthetic functions. It is mounted on top of the stove around the flue and filled with up to 88lbs of sauna stones. It allows to store the heat coming the pipe and thanks to the added stones, the surface for pouring water significantly increases, and that means less hot metal surfaces, that we wish to keep minimal in the sauna. The stone cage filled with sauna stones is also a decorative element matching the sauna heater and concealing the chimney pipe that emerges from the sauna furnace. Stone cages can be installed on top of each other.

• Elegant design matching the heater
• Added stone surface for pouring water increases significantly
• Various Stone Cages can be installed on top of each other
• Mounts on top of stove, around the pipe
• Holds up to 88lbs. of sauna stones
• Suitable for all HUUM wood-burning stoves
• Stainless steel construction
• Measures 11.81""D x 16.93""H

HUUM HIVE WOOD Stone Cage Manual

Water/Heat Exchanger

Optional.

The heat exchanger (water jacket) allows to heats water when the HIVE sauna stove is in use. The heat exchanger is made of 0.2 in (4 mm) steel and coated with heat-resistant paint. The heat exchanger is hidden on one of the sauna stoves' sides (back side or a lateral side). The heat exchanger has ¾″ male pipes for connecting the heat exchanger to the water tank.

HUUM HIVE WOOD Heat Exchanger Manual

Embedding Flange

Optional.

The embedding flange of the HIVE sauna stove is useful when you are planning to install your HIVE heater partly inside the sauna bench. It is made of stainless steel and it covers up the rugged wooden cut rims around the heater, leaving a beautiful, refined and smooth final result.

• As a design option, HIVE sauna stove can be embedded into a sauna bench.

• Use the embedding flange of the HIVE sauna stove to cover the cut rims of the opening.

• For HIVE WOOD 17kW sauna stove: inner diameter 22.6 in (57.5 cm), outer diameter 28.9 in (73.5 cm)

• For HIVE WOOD 13kW sauna stove: inner diameter 18.3 in (46.5 cm), outer diameter 24.6 in (62.5 cm )

• When the heater is embedded, at least 13.8 in (350 mm) of the heater should protrude from the sauna bench surface.

• 5-Year limited warranty


HUUM HIVE Embedding Flange Manual

Shipping & Returns

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

The driver is responsible for curbside delivery “only” and will lower the items to ground level.

Regarding Returns, please refer to our Returns & Refund Policy.

Warranty

Limited 5-year warranty (excluding heating elements)

HUUM Heater Warranty
