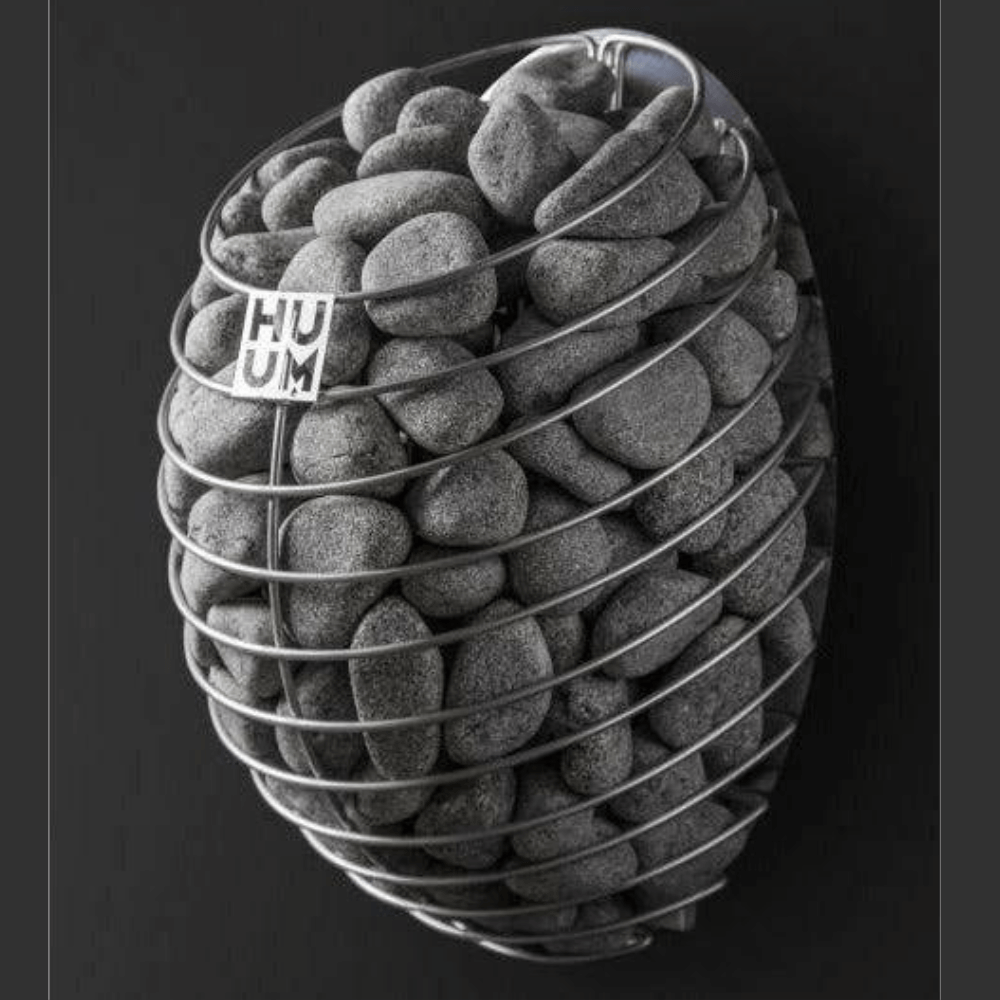

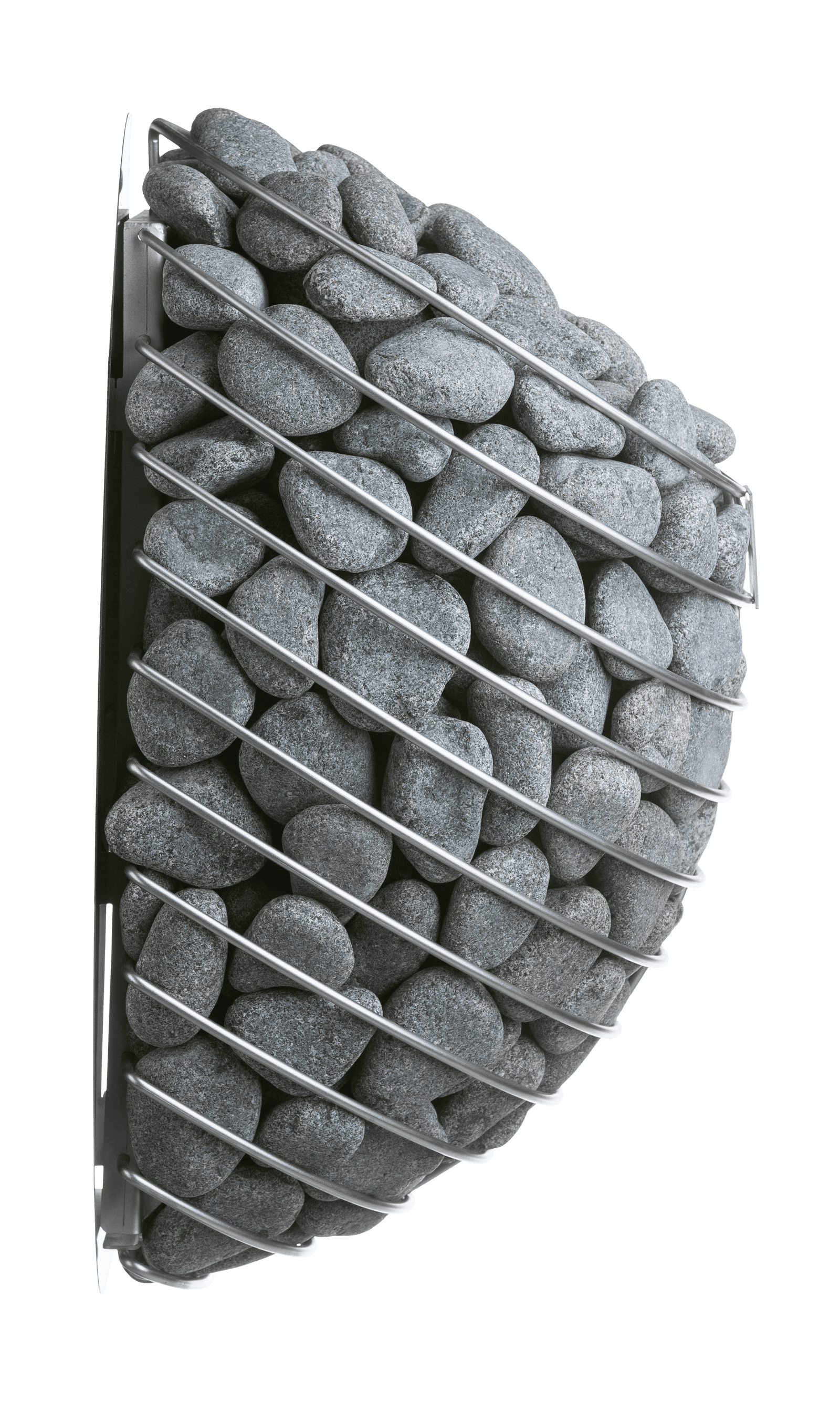

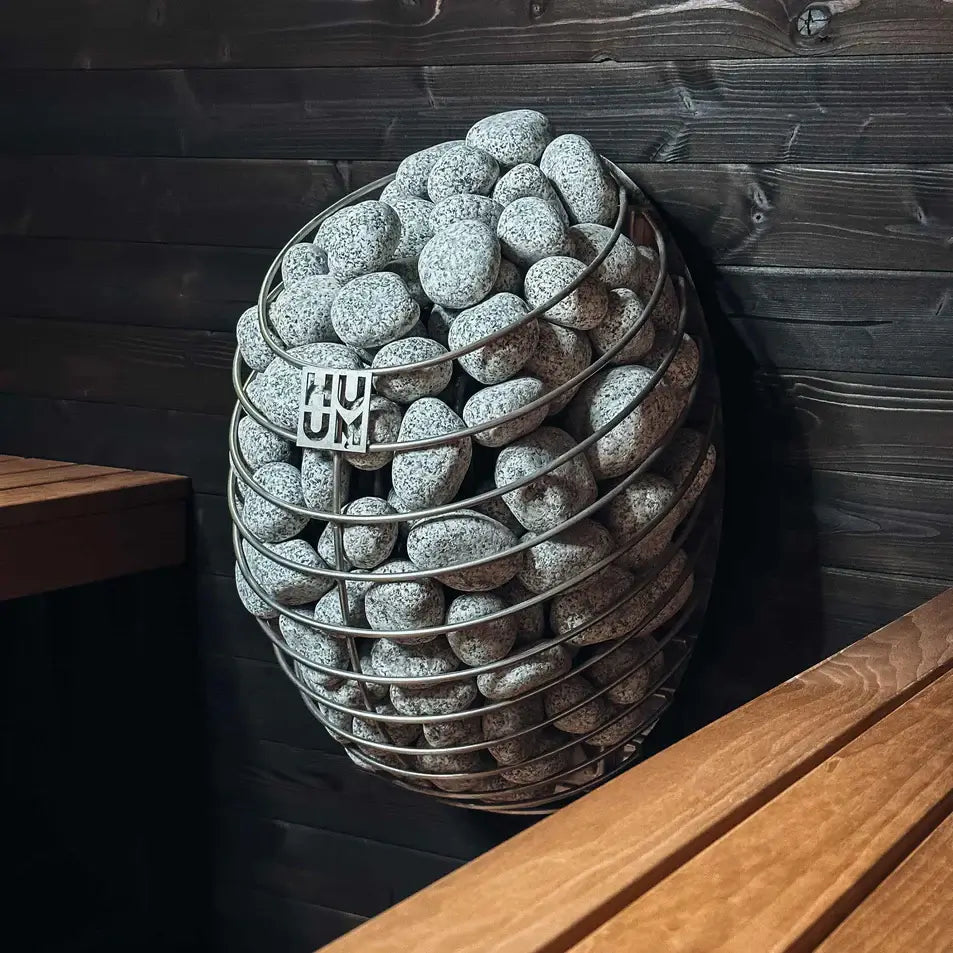

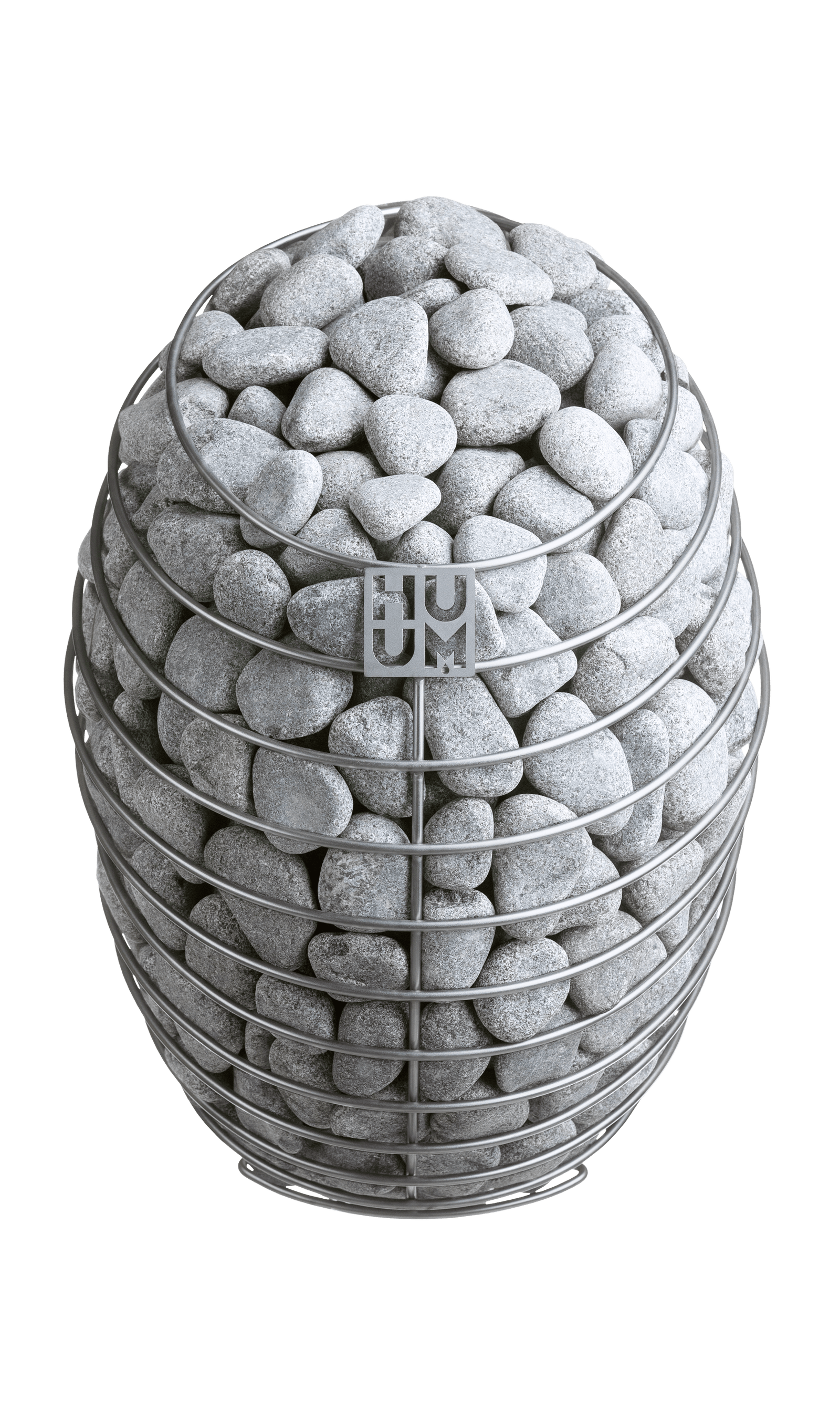

HUUM DROP Electric Sauna Heater – Where Elegance Meets Engineering Excellence

Description

Immerse yourself in the purest elements of nature with the HUUM DROP Electric Sauna Heater, a true masterpiece inspired by the simplicity of a water droplet. Beyond conventional design, it effortlessly blends sleek, rounded aesthetics with the classic angular beauty found in traditional saunas, introducing a touch of refinement to your sanctuary. Its rounded design not only softens but also complements the angular interior of a classic sauna, serving as a captivating focal point for any steam room.

Crafted with meticulous attention to detail, the DROP sauna heater has been honored with the prestigious Red Dot Award in Europe for its exceptional design. The organic and minimalist form is not just a visual delight; it's a testament to engineering excellence. This wall-mounted marvel defies its compact size by accommodating an impressive 122 lbs of sauna rocks, surpassing the capacity of most wood-burning stoves and ensuring a prolonged, gentle steam for an immersive bathing experience.

But the HUUM DROP isn't merely about appearances – it's about performance. Its exceptionally large rock capacity allows you to pour more water onto the stones, creating a consistently soft, high heat that envelops you in warmth. The result? A sauna experience that goes beyond the ordinary.

Control your sauna experience with the available Wi-Fi control feature, enabling you to preheat your sauna from anywhere. It's the perfect addition for those who demand the absolute best in sauna heating technology.

Immerse yourself in the allure of the DROP electric sauna heater – more than a mere appliance, it's a heartwarming champion that wins hearts. A captivating focal point for any steam room, the HUUM DROP transcends ordinary heating, offering a perfect blend of style, performance, and convenience. With its impressive features and superior appearance, this sauna heater becomes a must-have for any sauna enthusiast. Elevate your sauna experience – choose the HUUM DROP.

Presentation Videos

Features

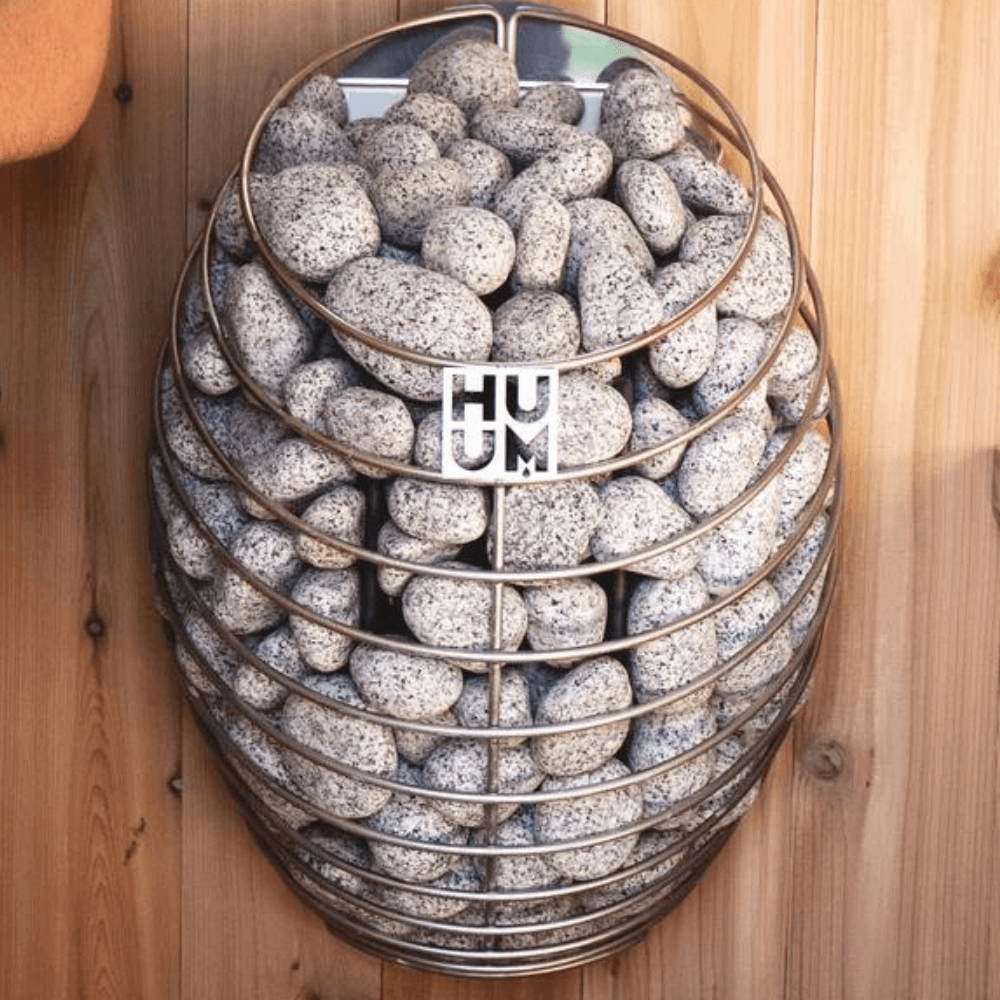

• Unique water-drop design

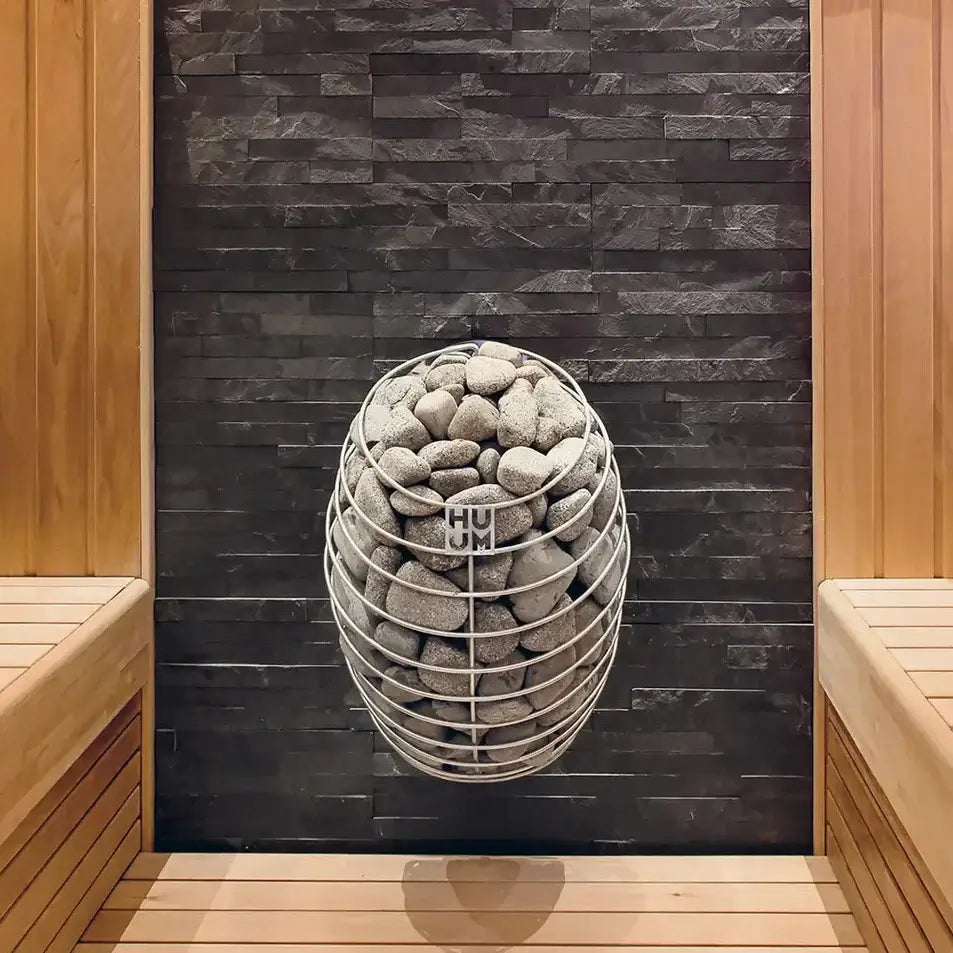

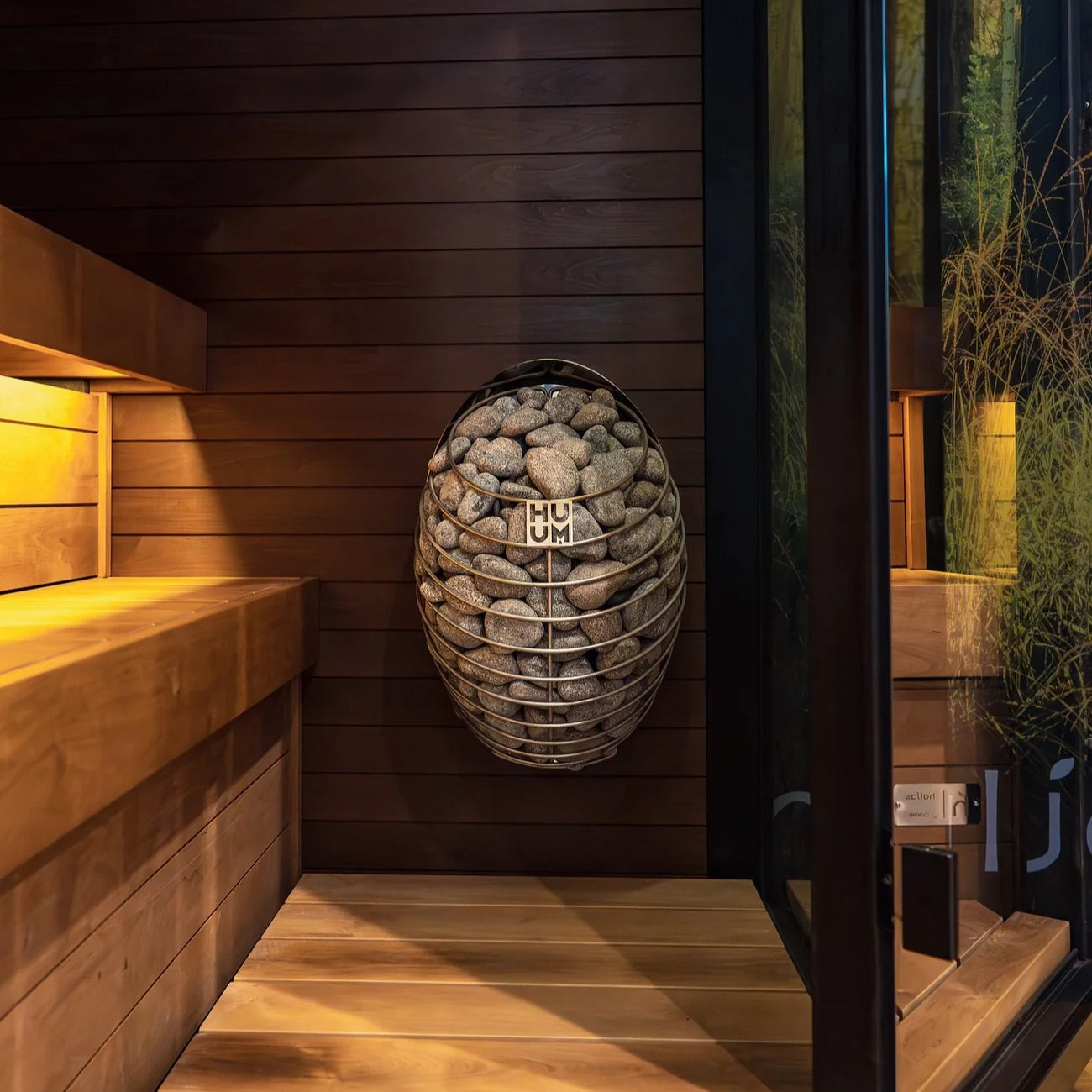

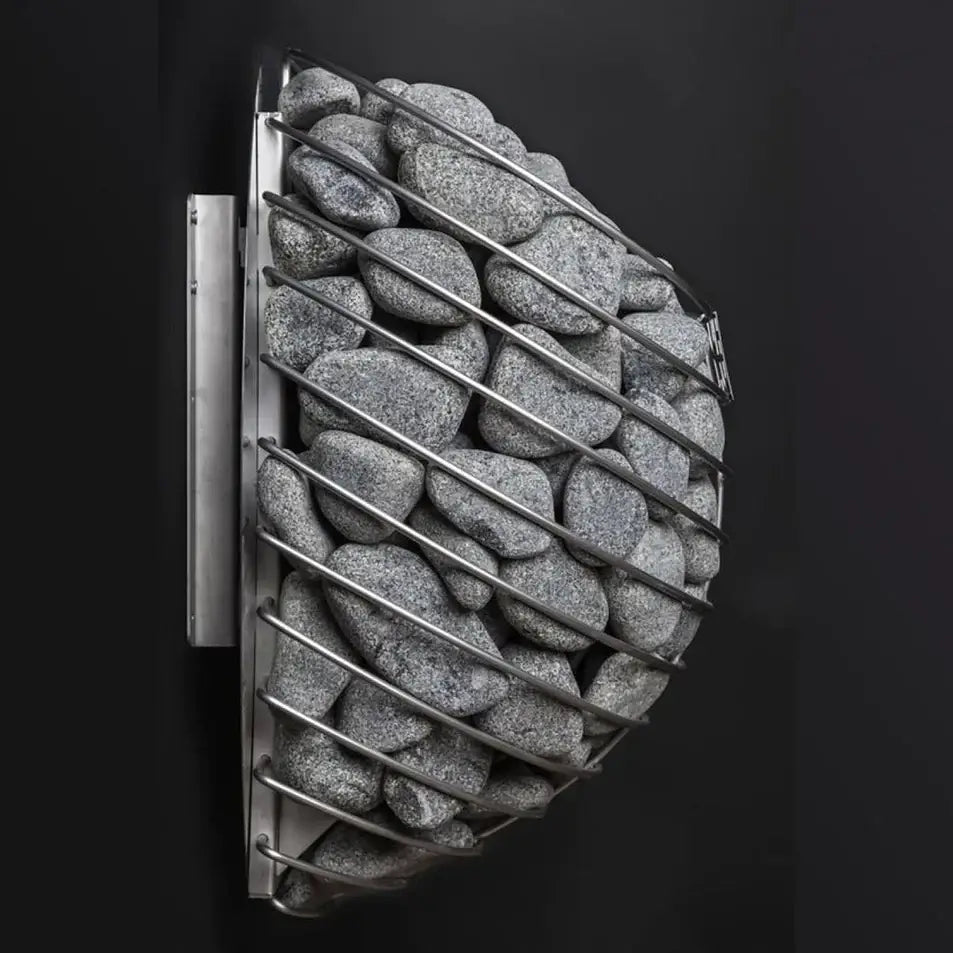

• Wall-mounted design
• For sauna rooms from 106 - 530 cubic feet
• High stone capacity (122 pounds - 4 boxes sold separately)

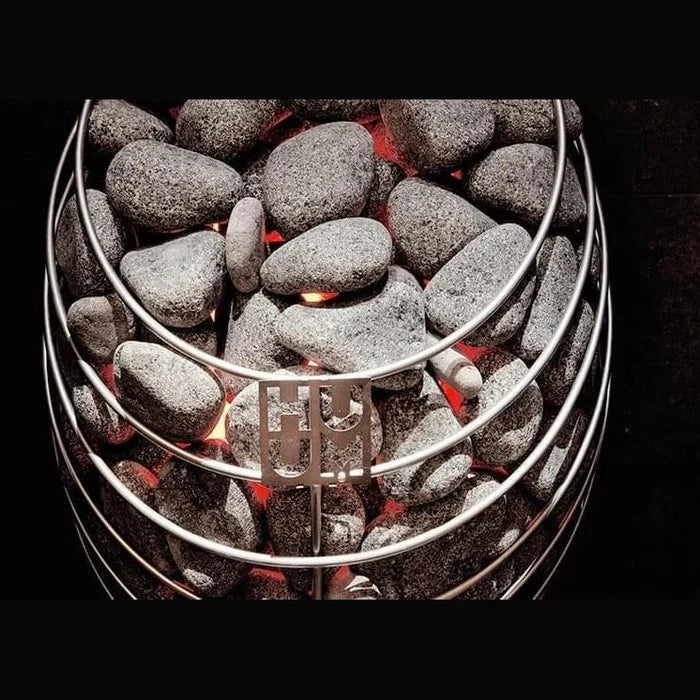

• More exposed stones create a consistently softer and higher heat

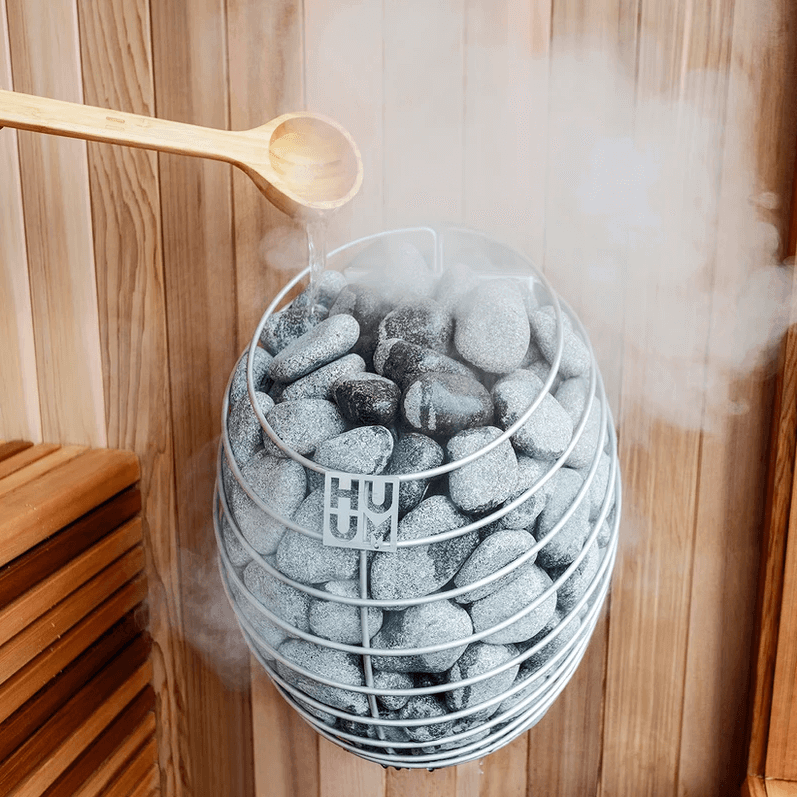

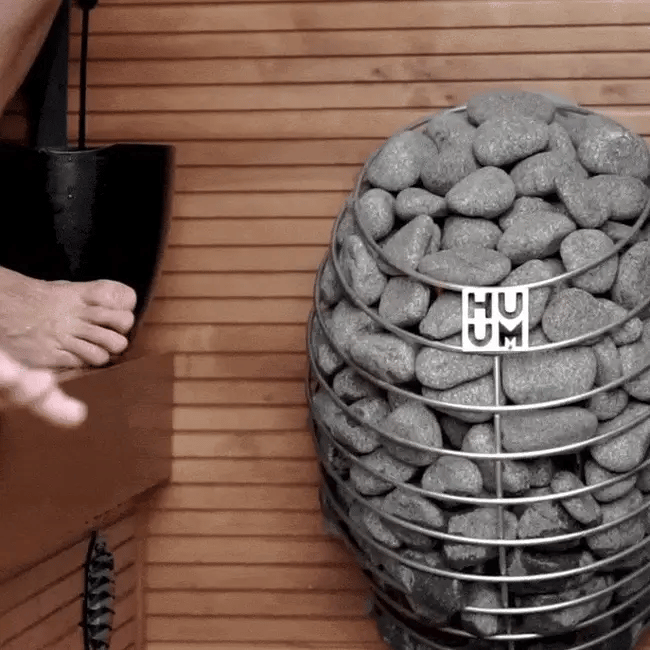

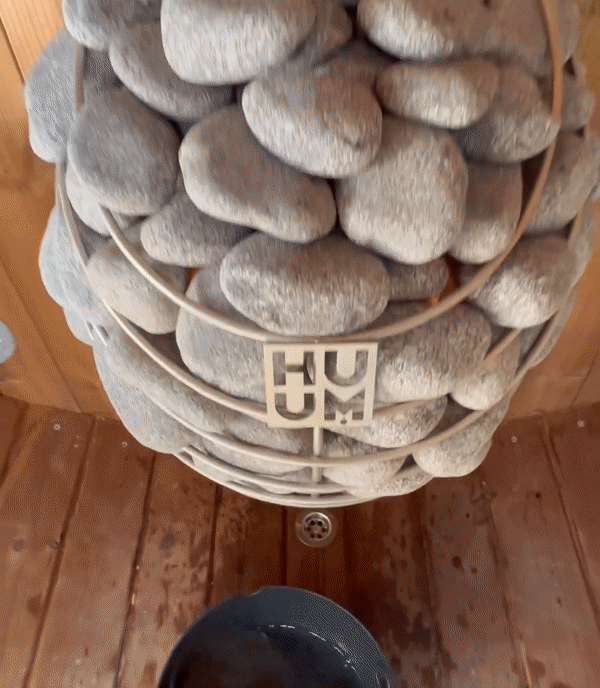

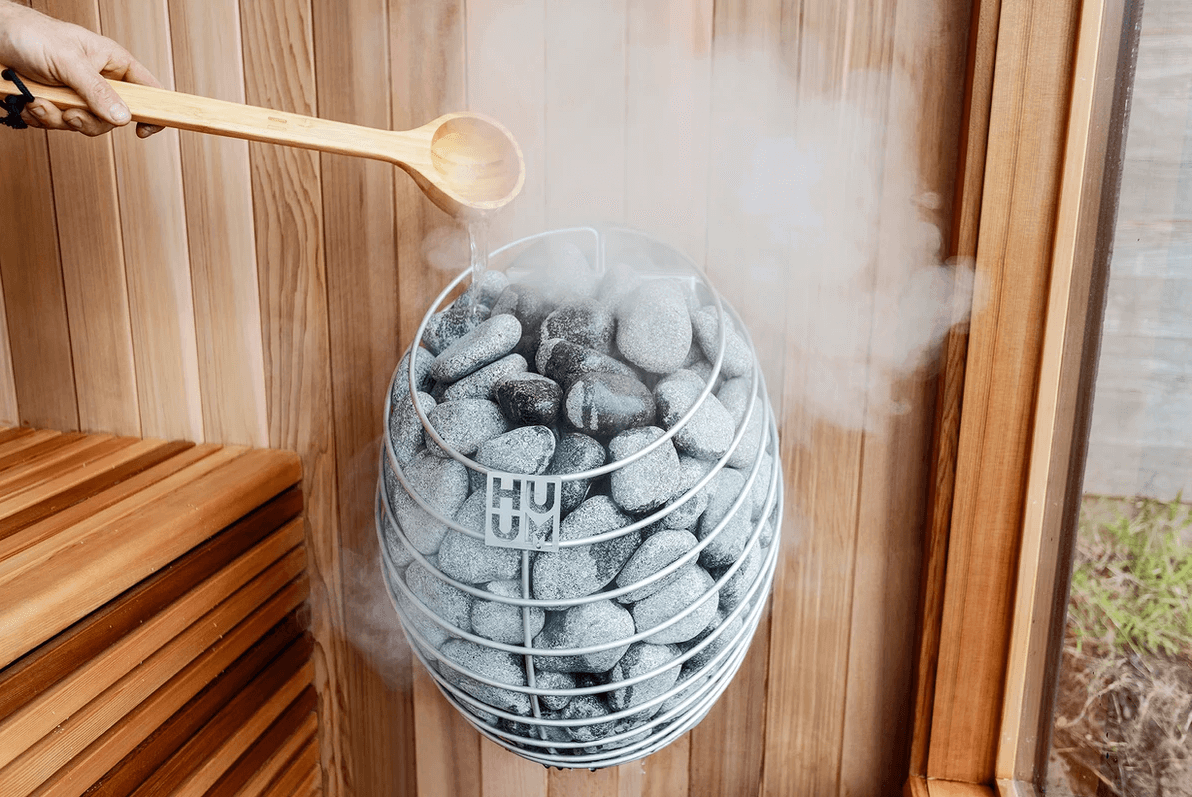

• Pour water on stones for steam

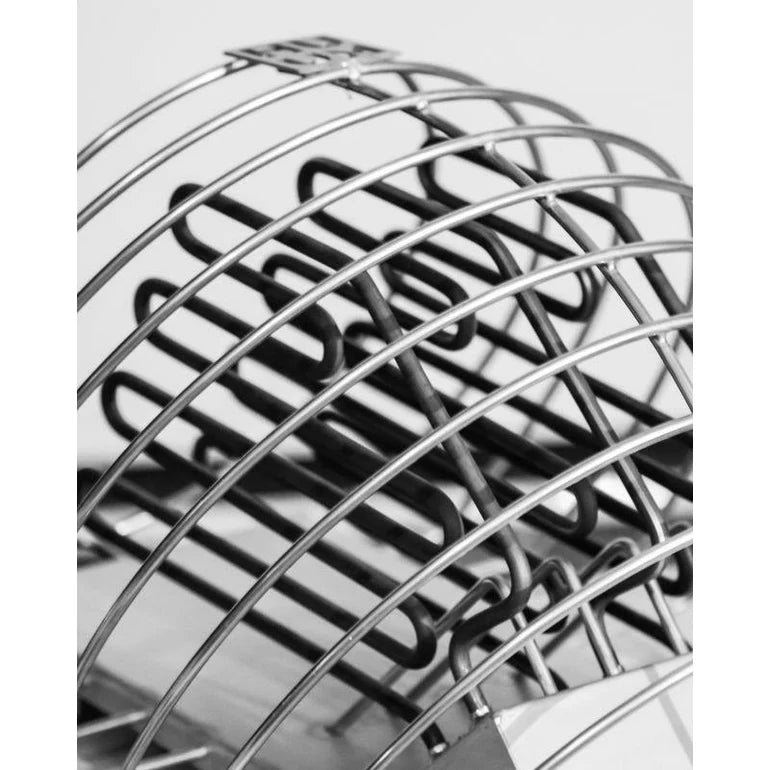

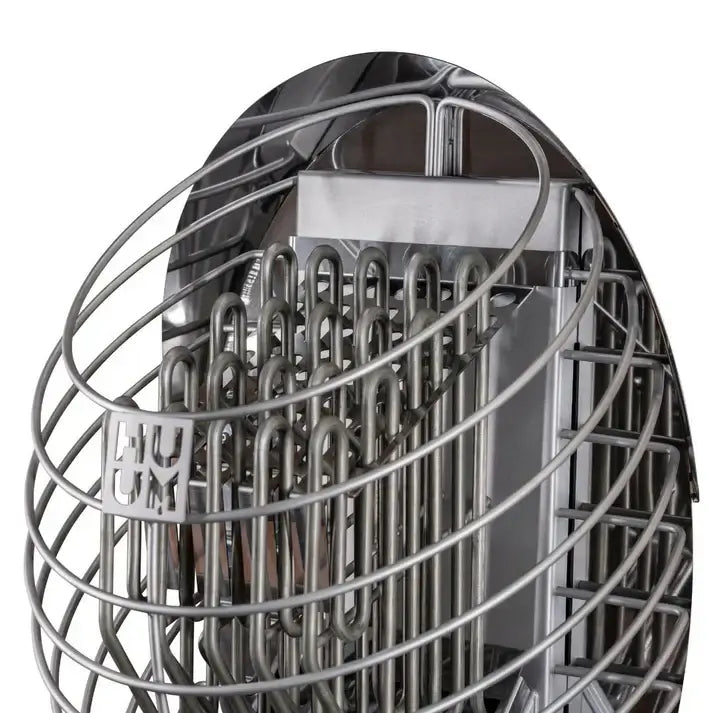

• Stainless steel construction, industrial quality heating elements​
• Works with a UKU control (sold separately)
• Optional Wi-Fi, to control from your mobile phone
• Dimensions: 15.4"W (390mm) x 13.2"D (335mm) x 23.3"H (590mm)
• 5-year limited warranty (excluding heating elements)
• Designed, engineered, and crafted in Estonia
• 240V/1PH operation
• SGS Listed

Specifications

All HUUM DROP:

• Installation Type: Wall-Mount
• Voltage/Phase: 240V/1PH
• Dimensions: 15.4"W×13.2"D×23.3"H (39.1cm W, 33.5cm D, 59.2cm H)
• Stone capacity: 122 lbs
• Min/Max Temperature: 104 F / 230 F

DROP 4.5 kW:

• Sauna room size: 106-247 ft³ (3-7 m³)
• Heater weight: 24 lbs
• Amps: 18.8 Amps
• Circuit Breaker Amperage: 30 Amps
• Wire Size: 10 AWG

DROP 6.0 kW:

• Sauna room size: 177-353 ft³ (5-10 m³)
• Can be used in smaller saunas for faster heating
• Heater weight: 24 lbs
• Amps: 25 Amps
• Circuit Breaker Amperage: 30 Amps
• Wire Size: 10 AWG

DROP 7.5 kW:

• Sauna room size: 230-441 ft³ (7-12 m³)
• Can be used in smaller saunas for faster heating
• Heater weight: 25 lbs
• Amps: 31.25 Amps
• Circuit Breaker Amperage: 40 Amps
• Wire Size: 8 AWG

DROP 9.0 kW:

• Sauna room size: 282-530 ft³ (8-15 m³)
• Can be used in smaller saunas for faster heating
• Heater weight: 26.5 lbs
• Amps: 37.5 Amps
• Circuit Breaker Amperage: 50 Amps
• Wire Size: 8 AWG



Positioning your DROP - Minimum Safety Clearances:

What's in the box

Included:

• HUUM Drop Sauna heater
• Wall-mount bracket
• Heat reflector for the 9kW HUUM Drop
• Installation and operation manual
• 5-Year limited warranty (excluding elements)


How to Install

For the detailed Installation Instructions and Electrical Connections, please refer to the following document: HUUM DROP Series Installation and Operation Manual

Please note: the electrical connection of the device must be performed by a qualified person in accordance with the applicable standards and requirements.

Additional Resources

HUUM Certificate Of Compliance

For Simple Sauna Sizing, please follow the link HUUM - Sizing Your Heater. Choose the heater with power adequate to the cubage of the sauna room.  However, for non-insulated walls (brick, glass block, glass, concrete, etc.) a more powerful heater is needed. Add 1,2 m³ to the cubage of the steam room per each square meter of uninsulated wall. For example, a 10 m³ sauna room with a glass door corresponds to the power requirement of a 11.5 m³ sauna room.

Accessories and Add-ons

The following options should be considered with your heater purchase.

Sauna Stones

Required for Operation. Sold Separately.

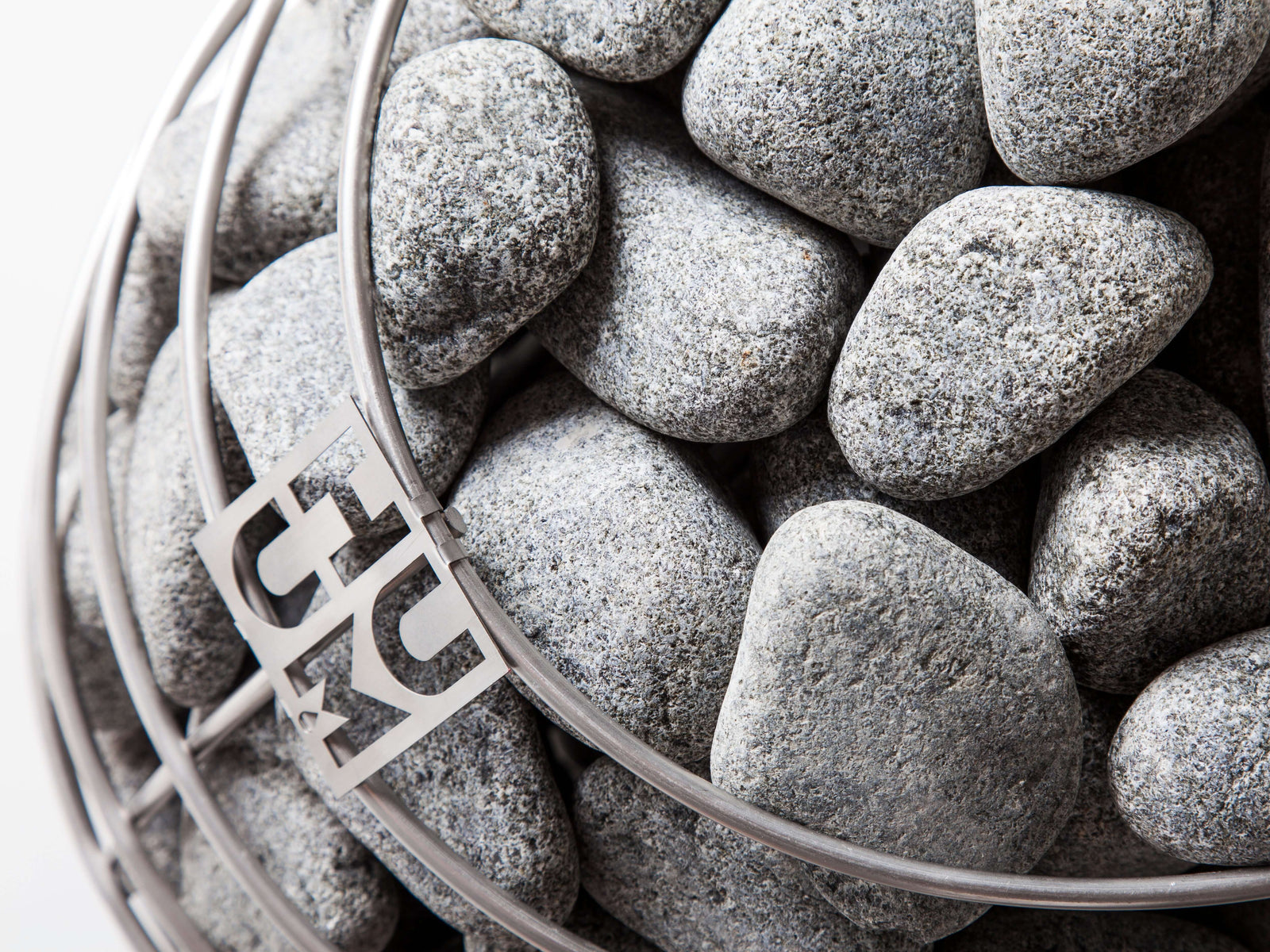

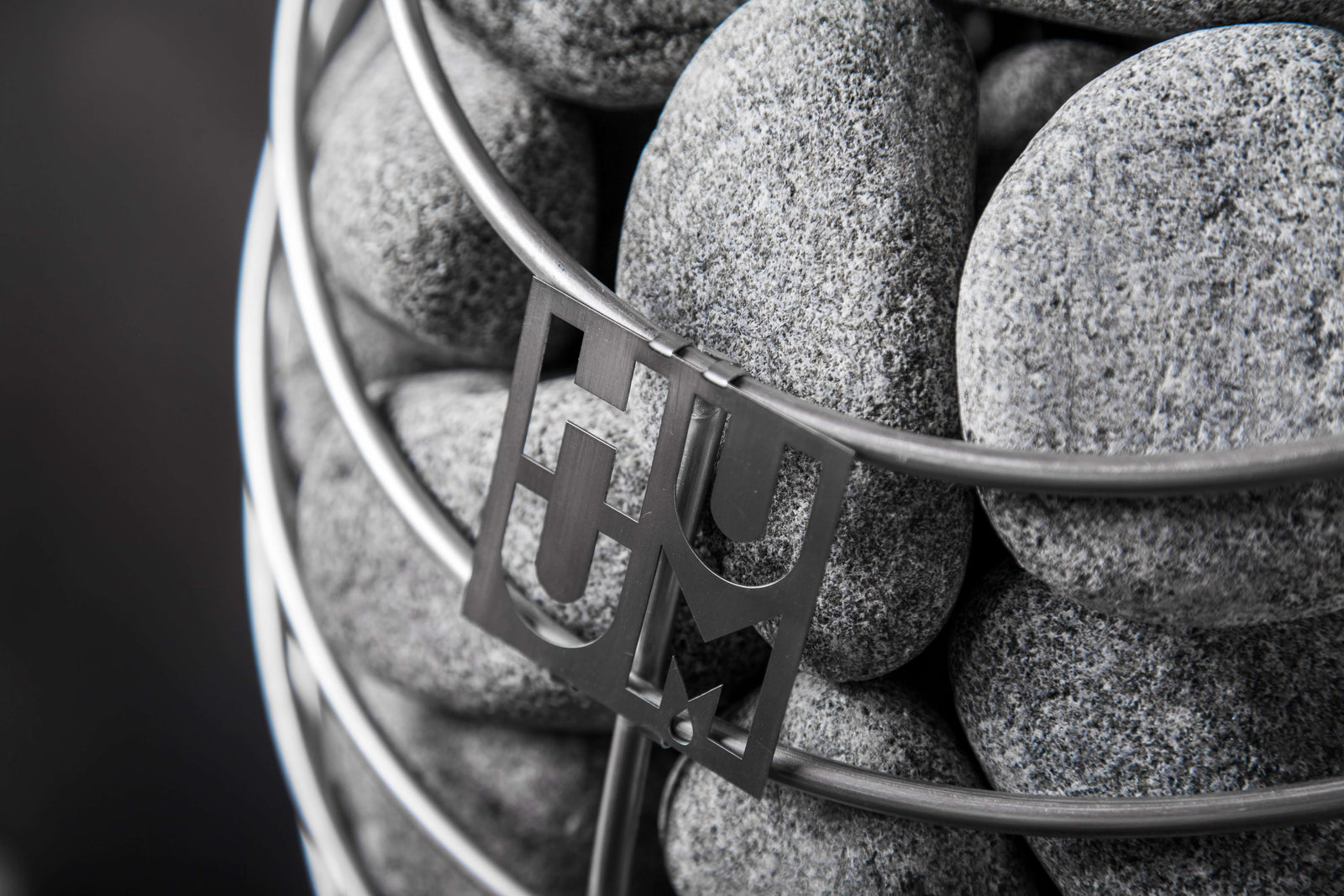

The HUUM round sauna stones of Olivine diabase are enduring and their thermal capacity is high. It’s recommended to use round sauna stones in HUUM sauna heaters. Round stones complement the design of the heaters and provide milder steam.

HUUM DROP sauna heater requires approximately 55 kg / 121 lbs. (4 boxes x 33 lbs.) of sauna stones with a diameter of 5-10 cm / 2-4 in.

Specifications:

• diameter of 5–10 cm / 2-4 in – box of 15 kg / 33lb

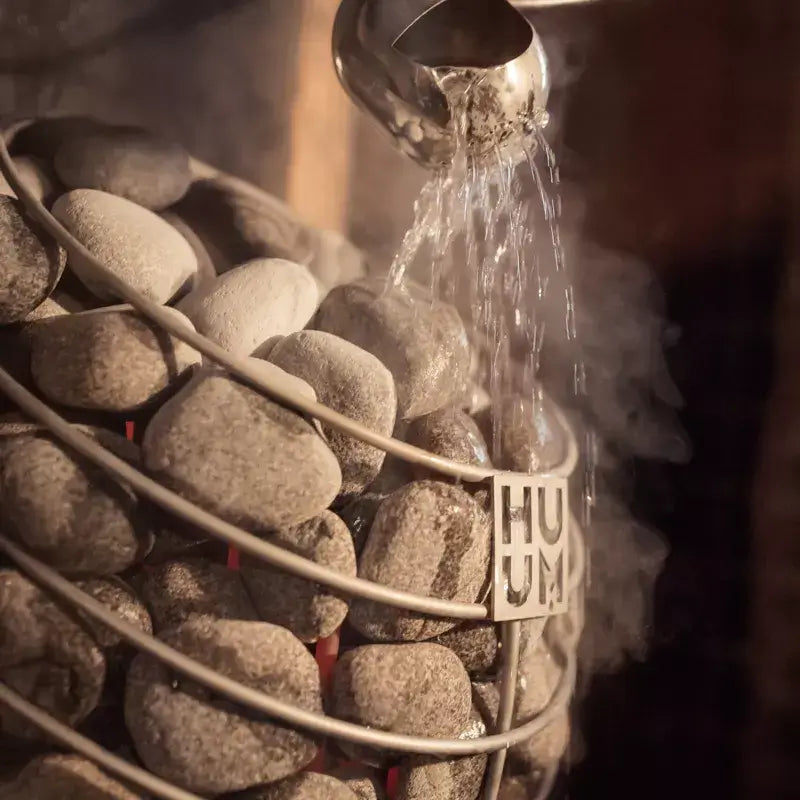

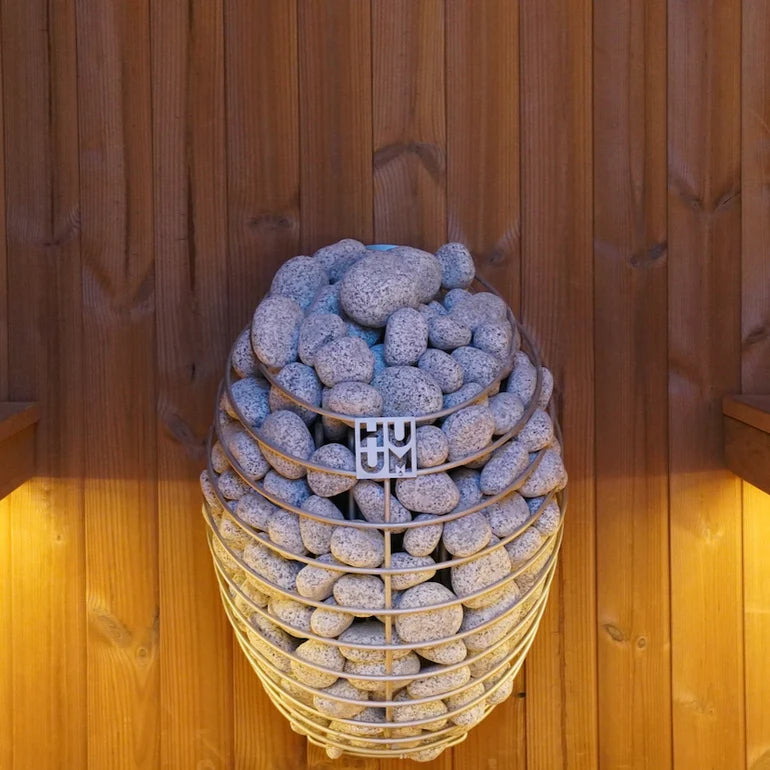

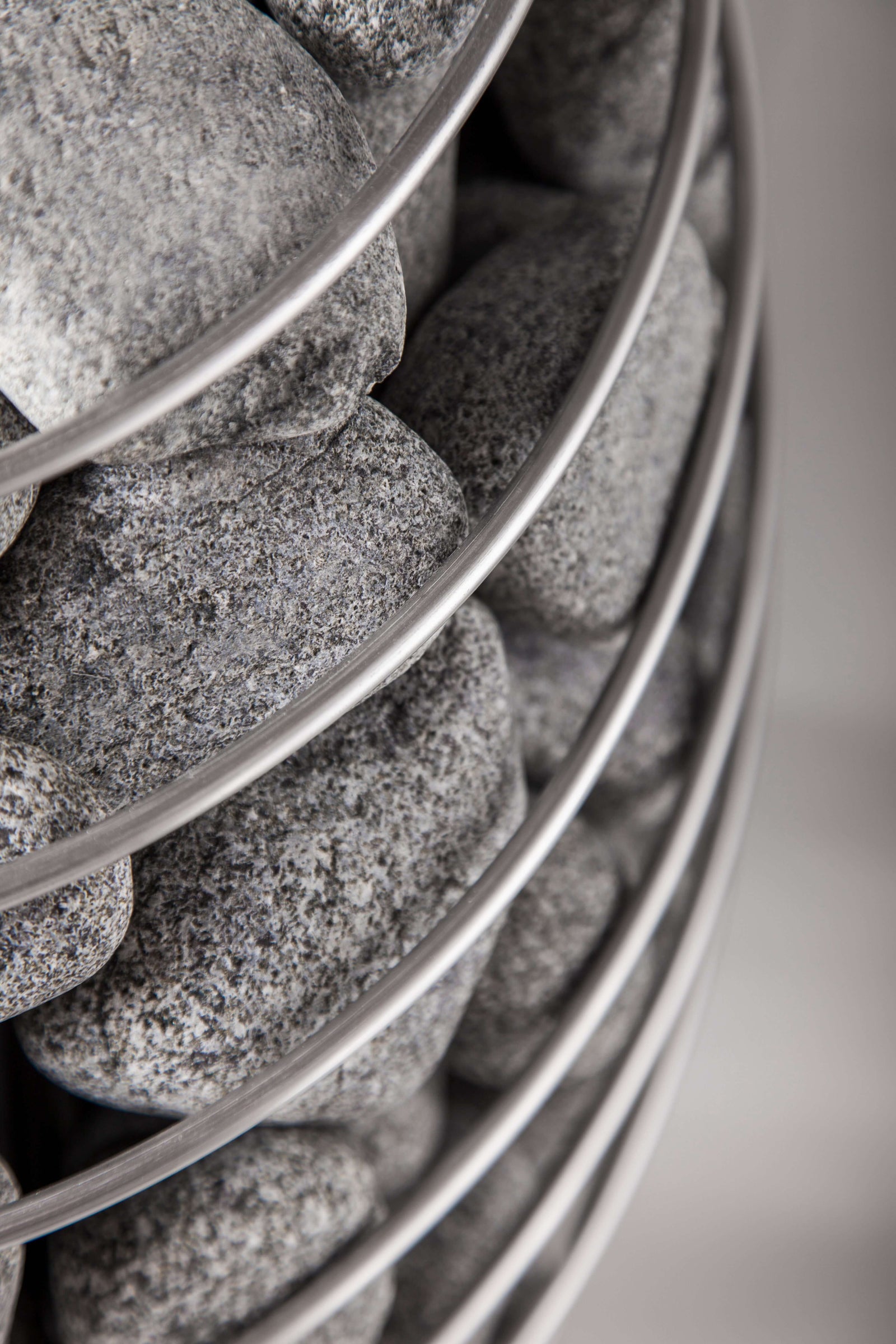

You regulate the heat and steam of the sauna by throwing water on the sauna rocks. The shape, size and composition of the stones, and their placement in the heater make all the difference. We recommend round sauna rocks because they provide milder steam. The round shape ensures that the water reaches inner stones and evaporates gradually instead of vaporizing in one go from the top layer. Sauna rocks are highly visible in HUUM sauna heaters, and you’ll need smaller and larger stones for filling the heater evenly without noticeable gaps. We suggest stacking a denser top layer with slightly smaller stones. This enhances the accumulation of heat.

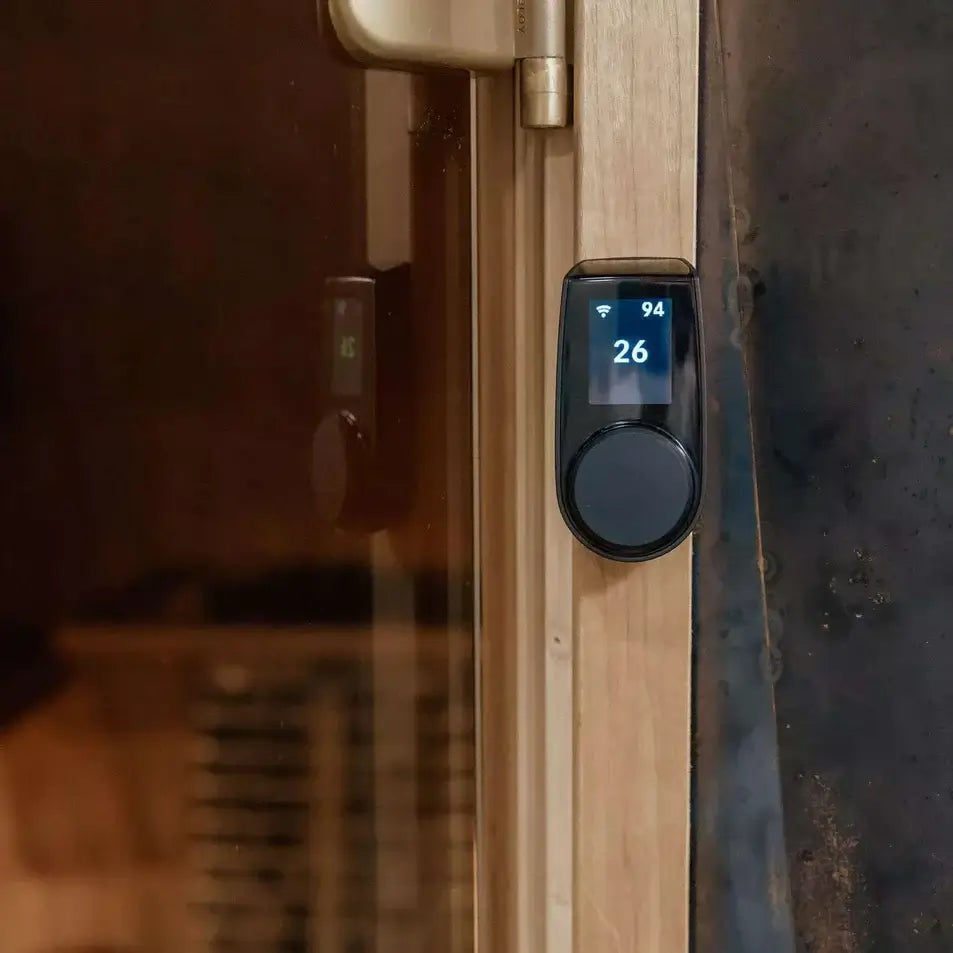

UKU Control

Not Included & Required for Operation. Sold separately. Your sauna controller. Multiple options including Wi-Fi capable.

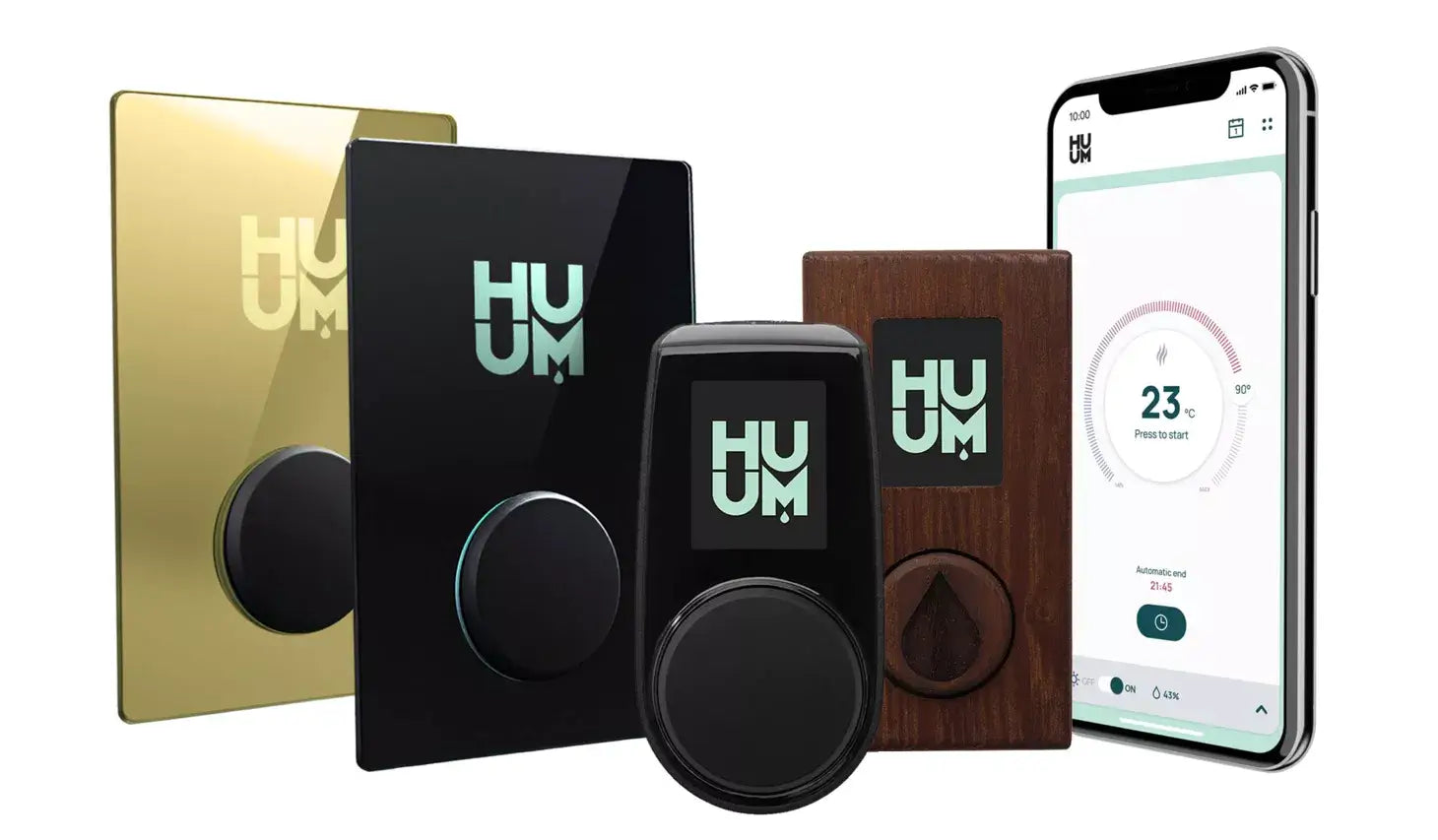

1. Choose the model. The UKU Control comes in two different models: UKU Local or UKU WiFi, choose what best suits your needs.

• UKU Local control system is perfect if you prefer to heat your sauna on the spot or don’t have a network connection in your location. With the stylish control panel on the wall, you can easily adjust the temperature, heating time, and more.

  You can also connect the sauna lighting, ventilation, and steamer to the control system for added convenience. Overheating protection and a child lock take care of the safety of your sauna. If you change your mind and want to control the sauna from the app, you can simply add Wi-Fi capability later.

• UKU WiFi control system is an excellent option for saunas in areas with WiFi coverage, such as homes, offices, or accommodations. With this system, you can heat your sauna using the control panel on-site or from your mobile phone, no matter where you are at the moment.

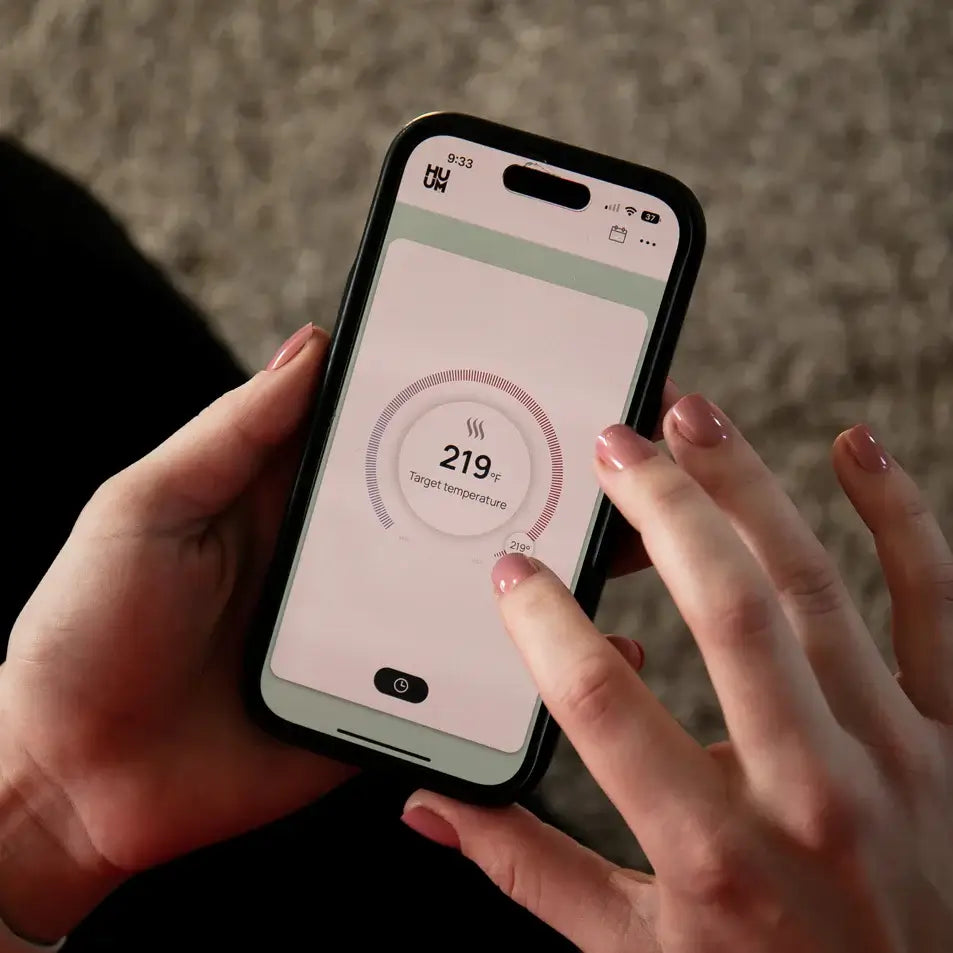

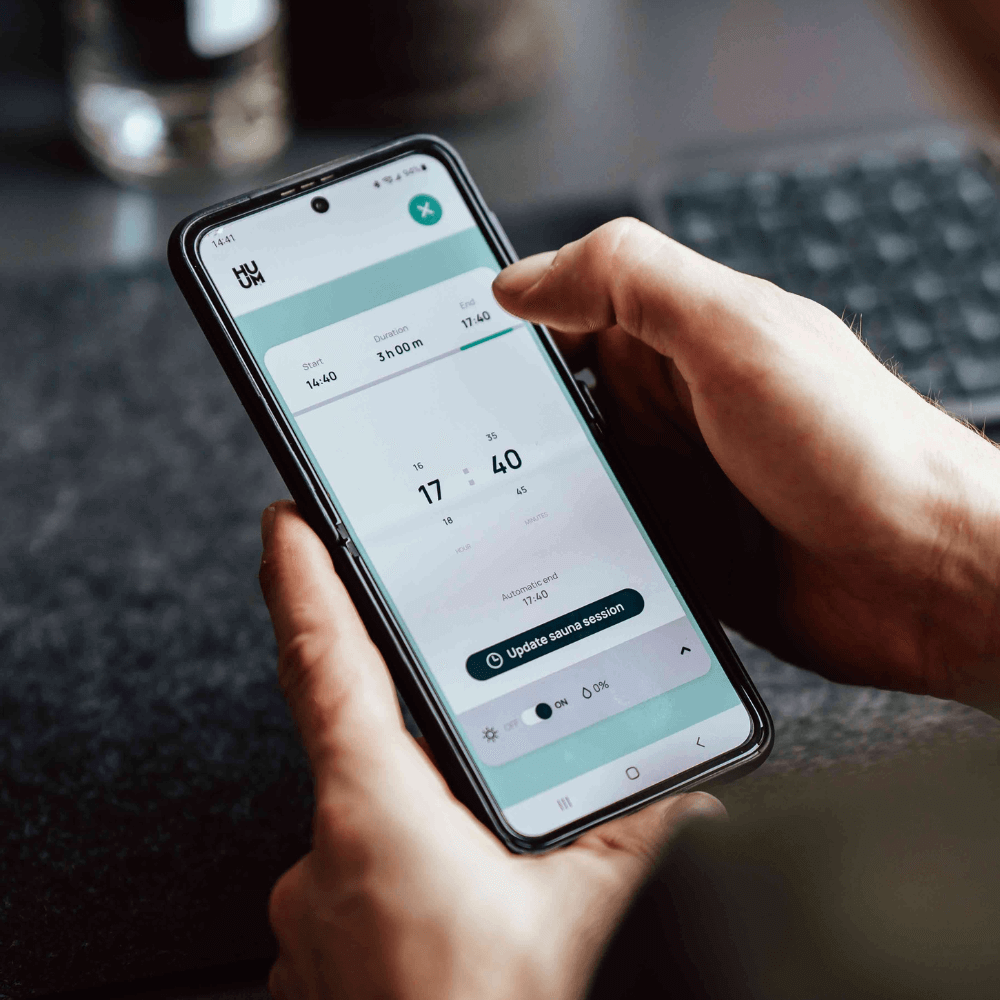

  HUUM app allows you to easily set the start and end time of heating, the target temperature, and check the current temperature of the sauna. Plus, you’ll receive a notification when the sauna is warm and ready to use.

  You can also connect the sauna lighting, ventilation, and steamer to the control system for added convenience. Overheating protection and a child lock take care of the safety of your sauna.



2. Choose the casing. There are different casing designs options, choose the one that suits the interior design of your sauna and to matches your style: CLASSIC, WOOD and GLASS.

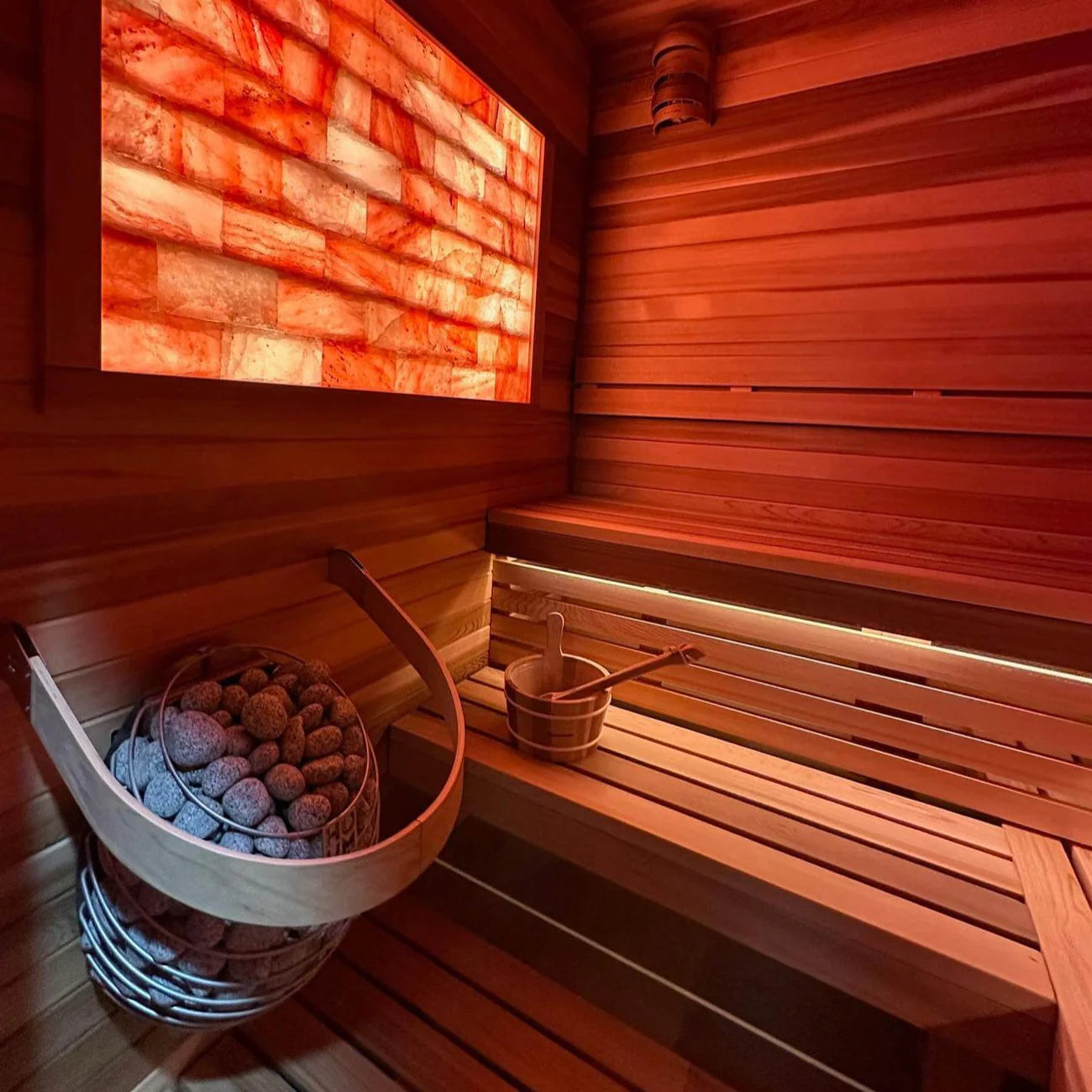

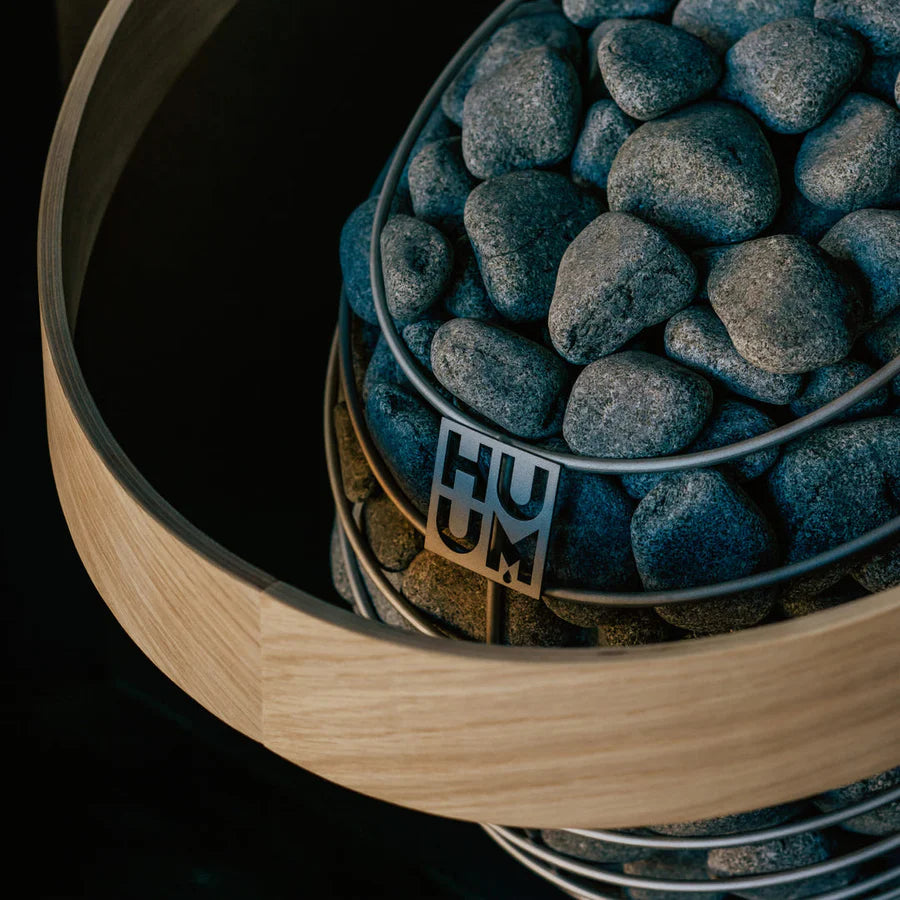

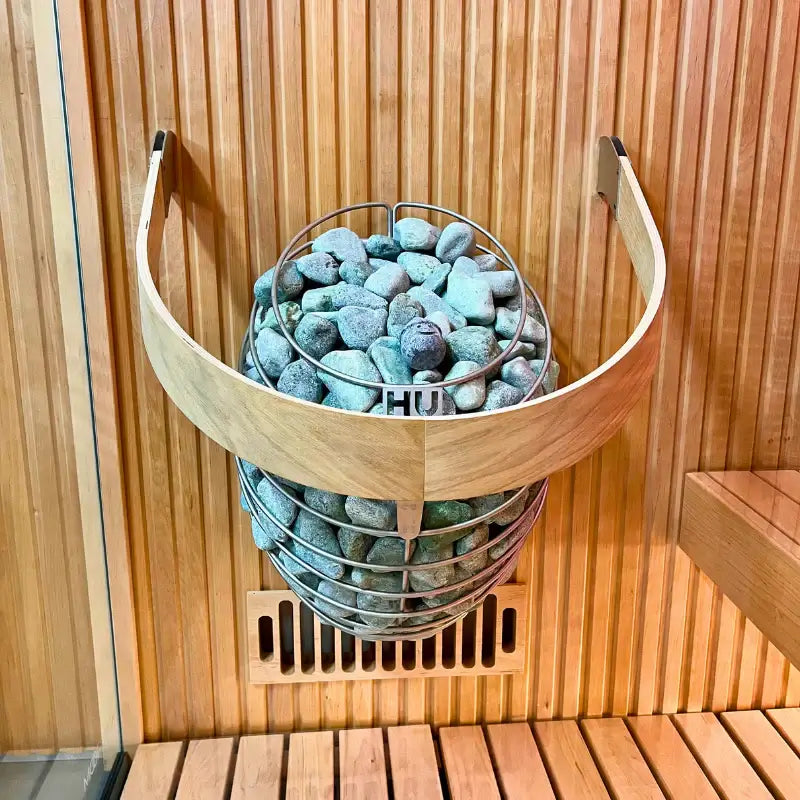

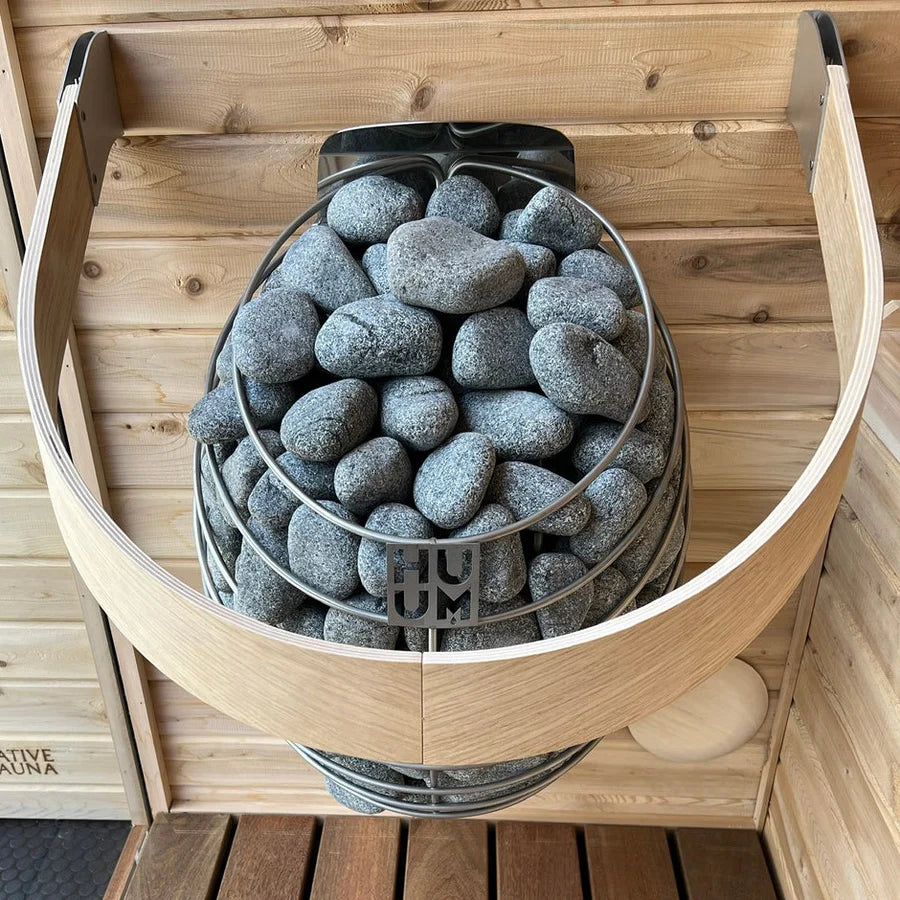

Safety Railing

Optional.

• The safety railing with wooden arches complements the design and adds safety.
• The safety railing of DROP electric sauna heater increases safety in the sauna room as it helps to prevent accidental contact with the hot heater. The railing is made of wood, and its fasteners from stainless steel. Classy wood-toned arcs raise the level of safety and give a stylish complement to the interior of the sauna room.

Embedding Flange

Optional.

• As a design option, DROP electric sauna heater can be embedded into the sauna bench.
• Use the embedding flange of the DROP electric sauna heater to cover the cut rims of the opening.
• The embedding flange of the DROP electric sauna heater is an accessory that enables one to achieve a beautiful final result when you wish to mount the DROP sauna heater partly inside the sauna bench. The embedding flange is made of stainless steel. It covers the rugged wooden cut rims around the heater, and gives a refined and smooth final result.
• at least 375 mm / 14.8 in of the heater should protrude from the sauna bench surface.
